V Series Description

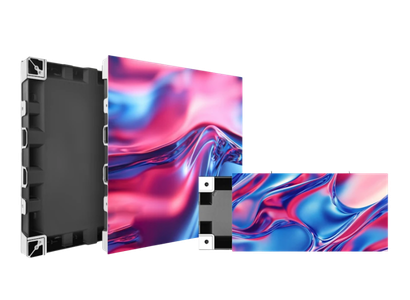

Blog Image

The V Series offers a variety of panel sizes, including 250*500mm, 500*500mm, 500*1000mm, and 250*1000mm, and supports pixel pitches of P1.2, P1.5, P1.9, P2.6, and P2.9, making it an ideal choice for Indoor fine pitch display applications.

Designed to deliver exceptional image clarity and sharpness, the V Series panels cater to environments where high-definition visuals and precision are critical. These include retail solution, control rooms, corporate environments, TV studios, conference halls, and other professional venues that require high-resolution, fine-pitch displays.

Thanks to its slim design with die casting aluminum material, V series supports rightangle installation, Cube installation, hanging installation with double sided to meet any requriment.

The versatile range of pixel pitches and panel sizes allows for flexible configuration, offering seamless integration into different spaces and ensuring a high level of visual performance. Whether for detailed data presentation, immersive video playback, or any other demanding visual application, the V Series provides a top-tier display solution tailored to diverse professional environments.


KEY FEATURES

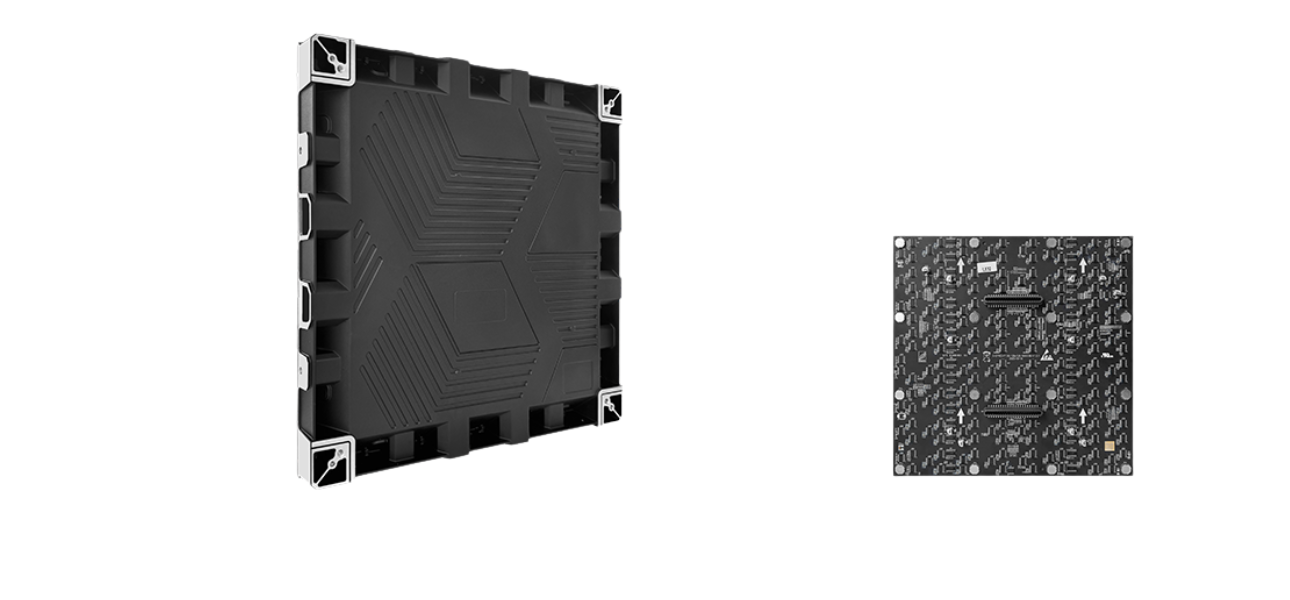

  • 01_Ultra Slim & Lightweight Design

    Easy to operate, also saving installation cost and transportation cost

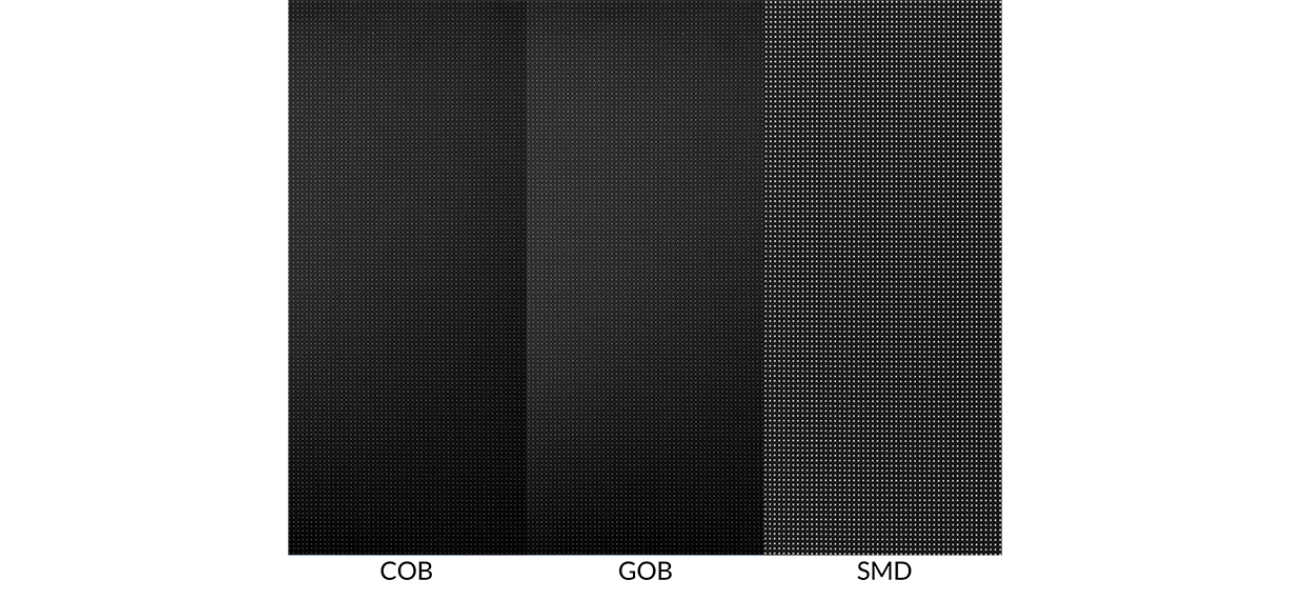

  • 02 _SMD / GOB / COB Optional

    Thanks to the various technology for digital displays, SMD,GOB or COB will be widely recommended according to the application

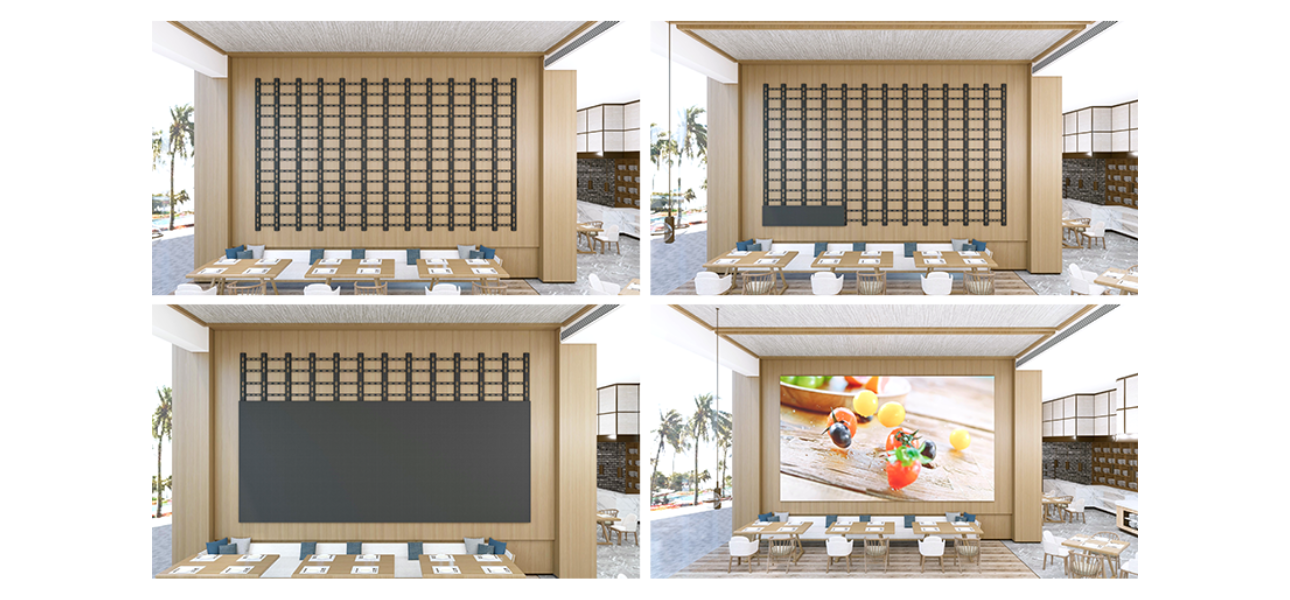

  • 03 _Complete Package Available

    Ready-made brackets, ensuring the whole screen flat and seamless; Easy installation.

  • 04 _Super Flatness with die casting aluminum cabinet

    Die-casting aluminum frame with super flat installation, close viewing is not easy to produce visual granularity

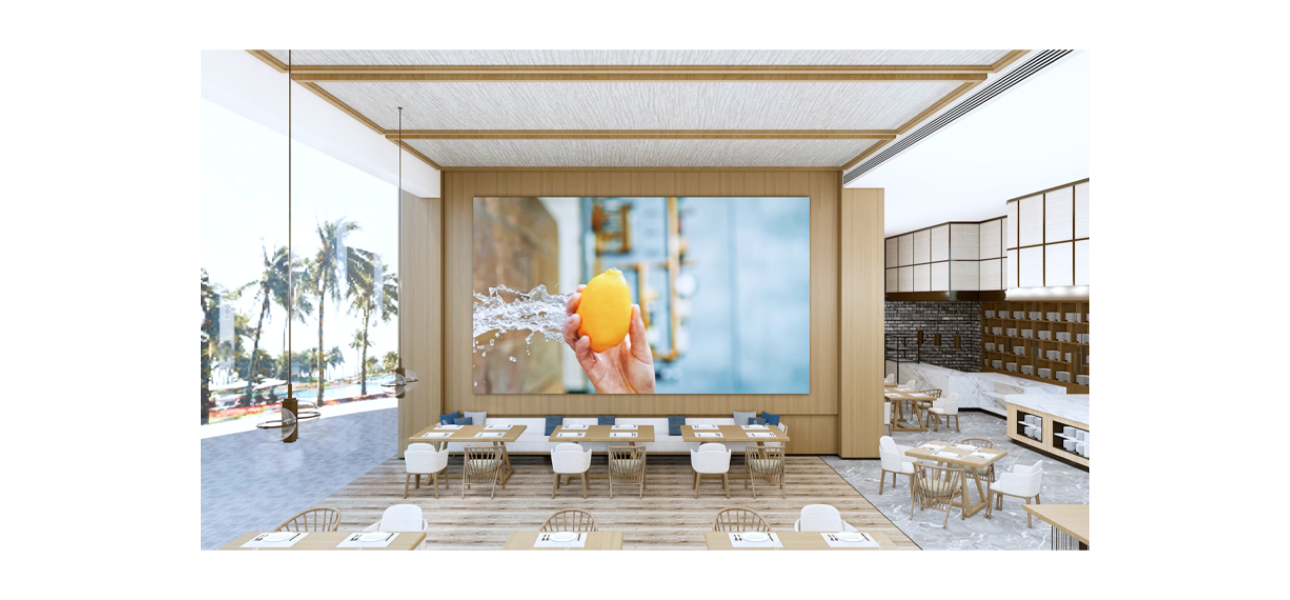

  • 05 _Small Pixel Pitch - Infinite Display

    The V Series features a cabinet seamlessly into display 2K to 4K ,for a truly expansive and engaging visual experience.

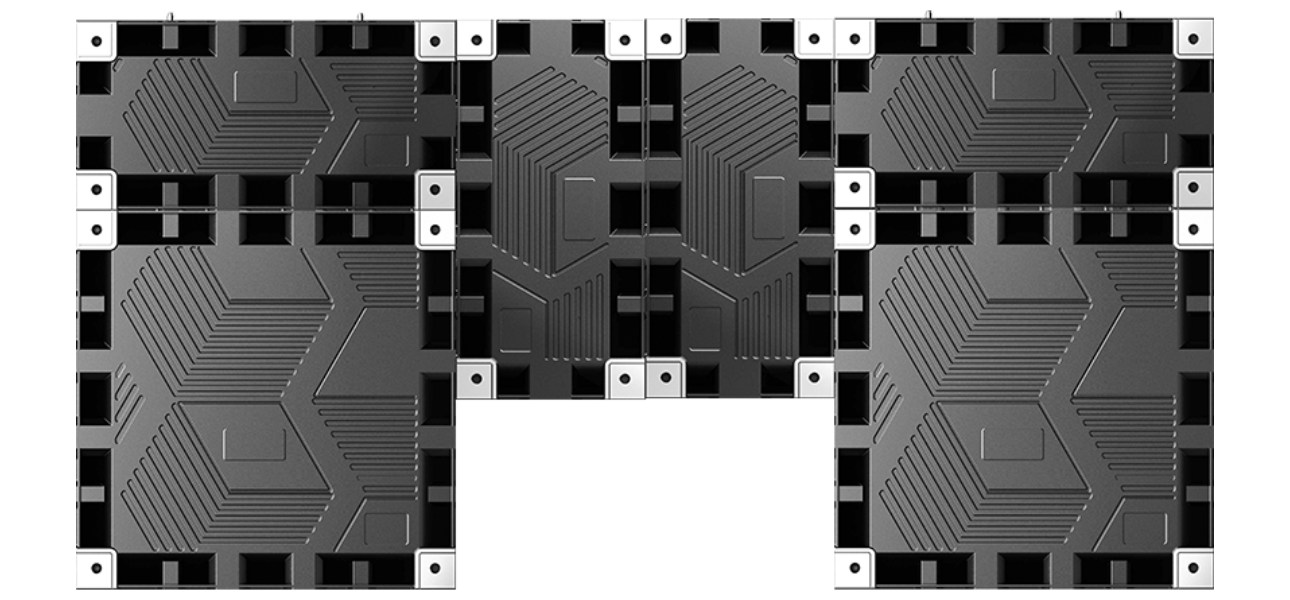

  • 06 _Flexible Splicing with Multiple Panel Size

    500*500mm/500*250mm/250*500mm ,500*1000mm, 250*1000mm can assembly into different sizes and various shape

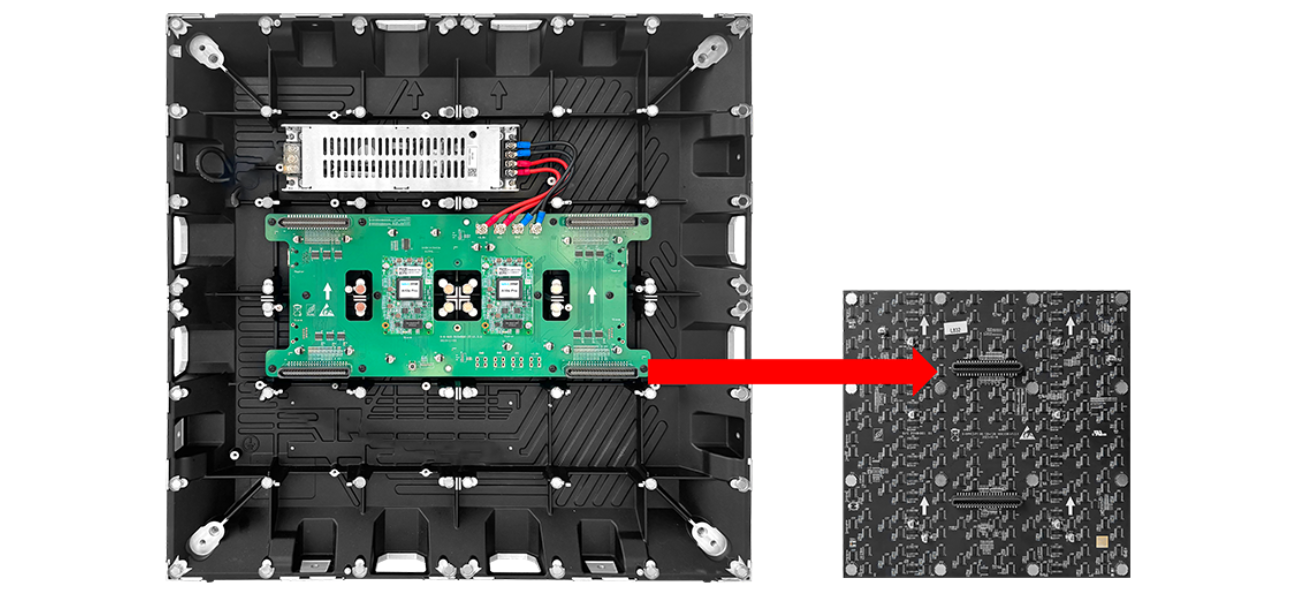

  • 07 _Cable-less Connection

    cable-less design, high stable work performance and tidy inner connection ,also easy replacement for module maintenance

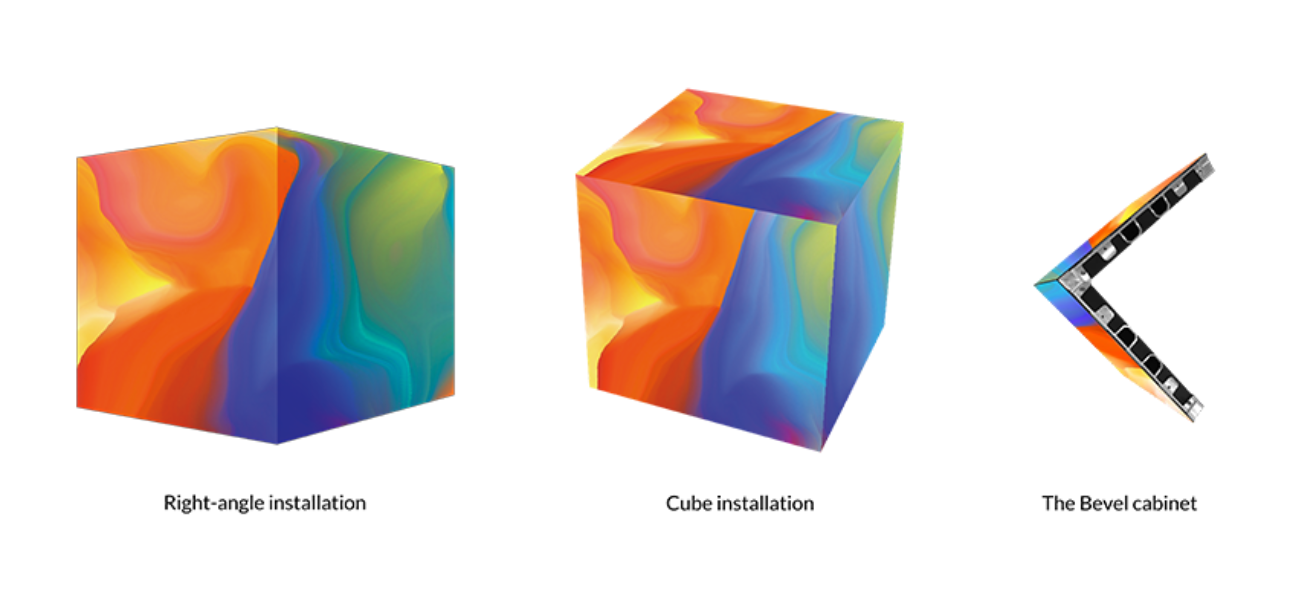

  • 08 _Right-angle Installations

    Thanks to the die casting aluminum, the cabinet supports bevel shape, enabling various splicing methods such as right-angle and cube installations, creating more possibility of indoor applications.

  • 09 _Accessories





V SERIES 1.25MM SMD INDOOR-V121

  • PIXEL PITCH:1.25mm
  • PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
  • MODULE PIXEL RESOLUTION (H X W):200x200dots
  • CABINET PIXEL RESOLUTION (HXW):400x400 dots | 800x200 dots | 200x400dots | 800x400dots
  • BRIGHTNESS:600-700nits
  • REFRESH RATE:3840Hz
  • CABINET SIZE:500*500mm |1000*250mm | 250*500mm | 1000*500*mm
  • CABINET WEIGHT:6.5Kgs ( 14.33 lbs)
  • ACCESSIBILITY:Front Access
  • IP RATING:IP30
  • CONTRAST RATIO: 50000:1
  • WORKING TEMPERATURE: -20℃~+40℃

V SERIES 1.56MM SMD INDOOR-V151

  • PIXEL PITCH:1.5625mm
  • PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
  • MODULE PIXEL RESOLUTION (H X W):160x160dots
  • CABINET PIXEL RESOLUTION (H X W):320x320dots | 640x160dots | 160x320dots | 640x320 dots
  • BRIGHTNESS:600-700nits
  • REFRESH RATE:3840Hz
  • CABINET SIZE:500*500mm |1000*250mm | 250*500mm | 1000*500*mm
  • CABINET WEIGHT:6.5Kgs ( 14.33 lbs)
  • ACCESSIBILITY:Front Access
  • IP RATING:IP30
  • CONTRAST RATIO: 50000:1
  • WORKING TEMPERATURE: -20℃~+40℃

V SERIES 1.9MM SMD INDOOR-V191

  • PIXEL PITCH:1.953mm
  • PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
  • MODULE PIXEL RESOLUTION (H X W):128x128dots
  • CABINET PIXEL RESOLUTION (H X W):256x256dots | 512x125dots | 128x256 dots | 512x256dots
  • BRIGHTNESS:600-700nits
  • REFRESH RATE:3840Hz
  • CABINET SIZE:500*500mm |1000*250mm | 250*500mm | 1000*500*mm
  • CABINET WEIGHT:6.5Kgs ( 14.33 lbs)
  • ACCESSIBILITY:Front Access
  • IP RATING:IP30
  • CONTRAST RATIO: 50000:1
  • WORKING TEMPERATURE: -20℃~+40℃

V SERIES 2.6MM SMD INDOOR-V261

  • PIXEL PITCH:2.604mm
  • PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
  • MODULE PIXEL RESOLUTION (H X W):96x96dots
  • CABINET PIXEL RESOLUTION (H X W):192x192dots | 384x96 dots | 96x192dots | 384x192dots
  • BRIGHTNESS:1000nits
  • REFRESH RATE:3840Hz
  • CABINET SIZE:500*500mm |1000*250mm | 250*500mm | 1000*500*mm
  • CABINET WEIGHT:6.5Kgs ( 14.33 lbs)
  • ACCESSIBILITY:Front Access
  • IP RATING:IP30
  • CONTRAST RATIO: 50000:1
  • WORKING TEMPERATURE: -20℃~+40℃

V SERIES 2.9MM SMD INDOOR-V291

  • PIXEL PITCH:2.976mm
  • PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
  • MODULE PIXEL RESOLUTION (H X W):84x84dots
  • CABINET PIXEL RESOLUTION (H X W):168x168dots | 336x84dots | 84x168dots | 336x1638dots
  • BRIGHTNESS:1000nits
  • REFRESH RATE:3840Hz
  • CABINET SIZE:500*500mm |1000*250mm | 250*500mm | 1000*500*mm
  • CABINET WEIGHT:6.5Kgs ( 14.33 lbs)
  • ACCESSIBILITY:Front Access
  • IP RATING:IP30
  • CONTRAST RATIO: 50000:1
  • WORKING TEMPERATURE: -20℃~+40℃
