SPRO Series Description

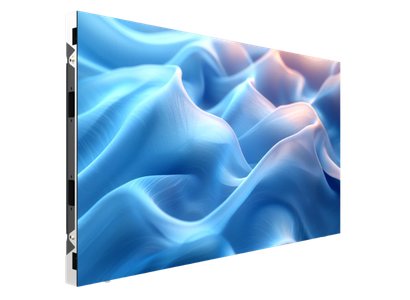

Blog Image

The SPRO Series is a cutting-edge, small-pixel pitch LED display solution designed for high-performance indoor applications that demand precision and clarity. With its sleek ultra-thin design and 16:9 aspect ratio, it integrates seamlessly into various settings, ensuring a modern and professional look. The SPRO Series offers a modular cable-less connection system with a 3-in-1 hub board, providing both reliability and ease of maintenance through front-serviceable access, minimizing downtime.

Available in pixel pitches of P1.25, P1.5, and P1.8, the SPRO Series delivers superior image quality and color accuracy, making it ideal for environments such as corporate offices, control rooms, and broadcast studios. The energy-efficient design also reduces operational costs, while its robust structure guarantees durability. Offering integrated solutions for installation, the SPRO Series ensures precise flatness and scalability, making it versatile for various applications.

This combination of energy efficiency, exceptional visual clarity, and easy maintenance positions the SPRO Series as an optimal choice for professional indoor LED display needs.


KEY FEATURES

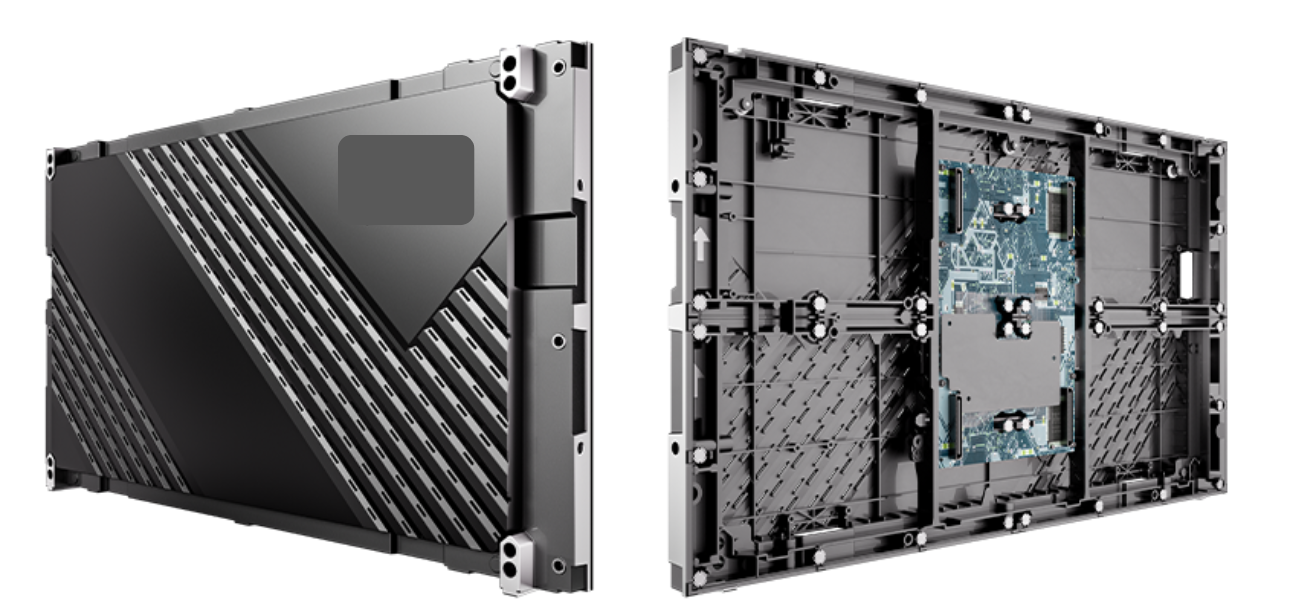

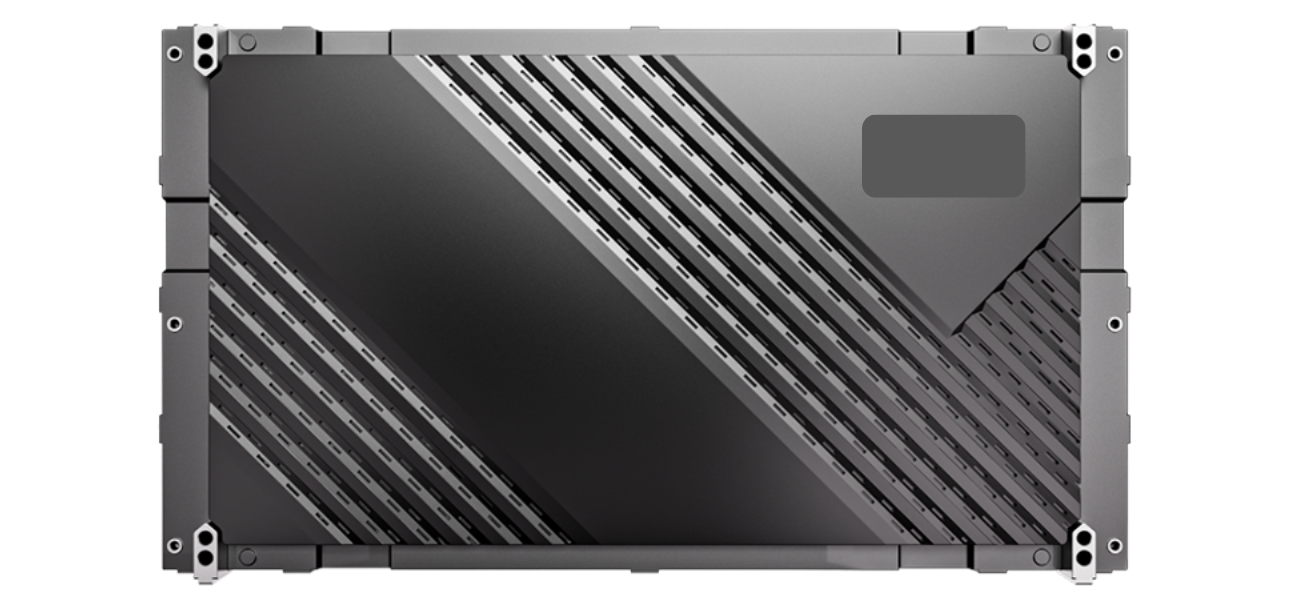

  • 01_Die-cast Aluminum Design

    High Flatness-Flatness Error ≤ 0.1mm Ultra-Lightweight- Weight: 3.5kg/Panel

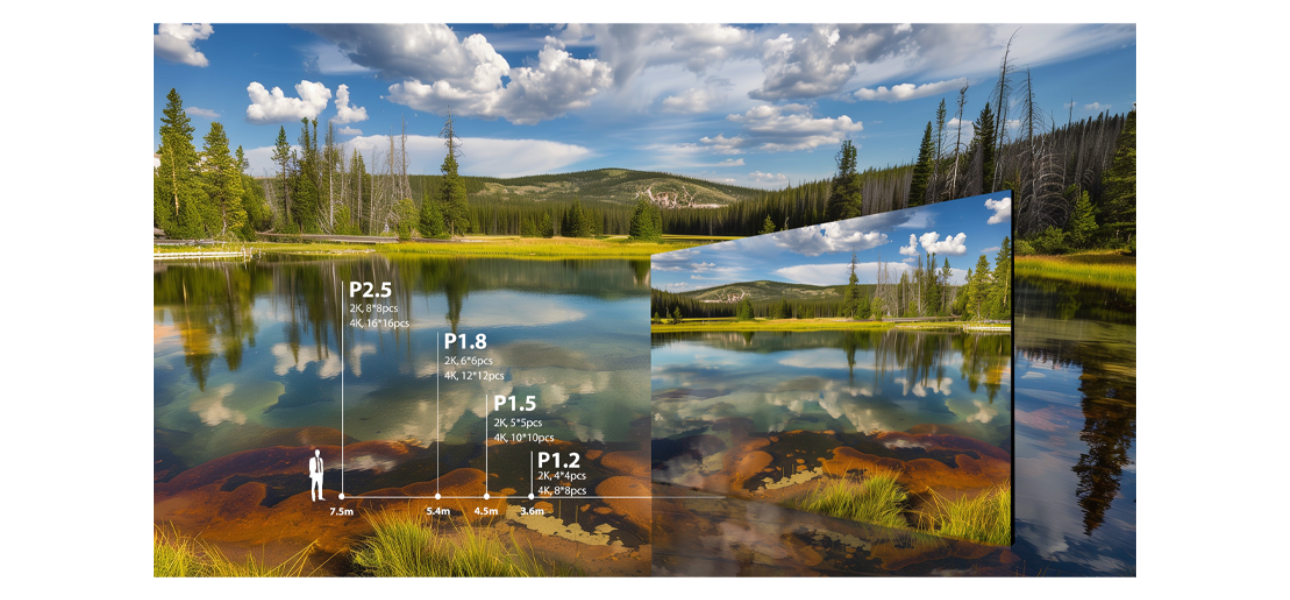

  • 02 _16:9 Aspect Ratio

    Standard 27.5" Size FHD/4K Pixel to Pixel Resolutions

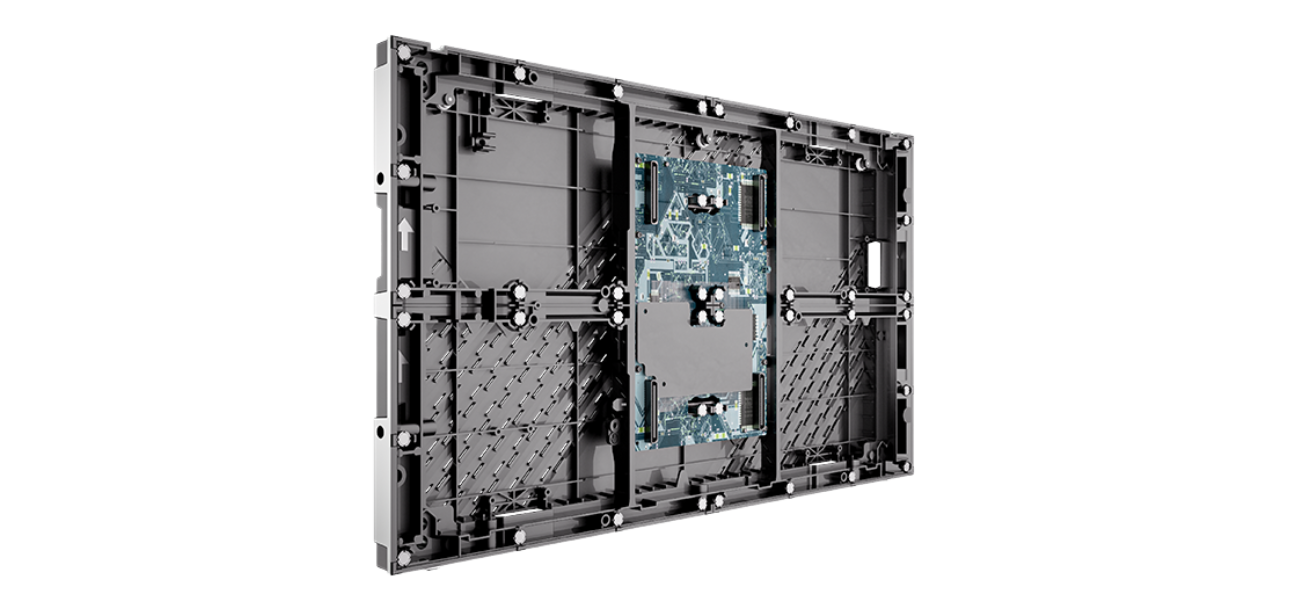

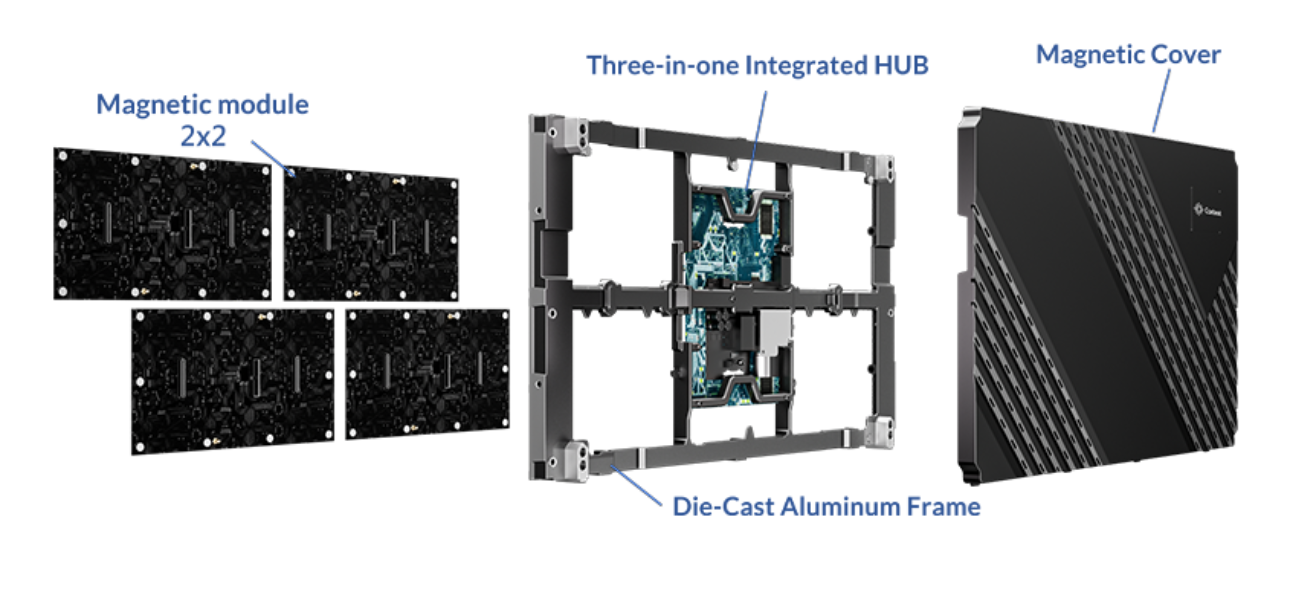

  • 03 _Three-in-one Integrated HUB with High efficient operation

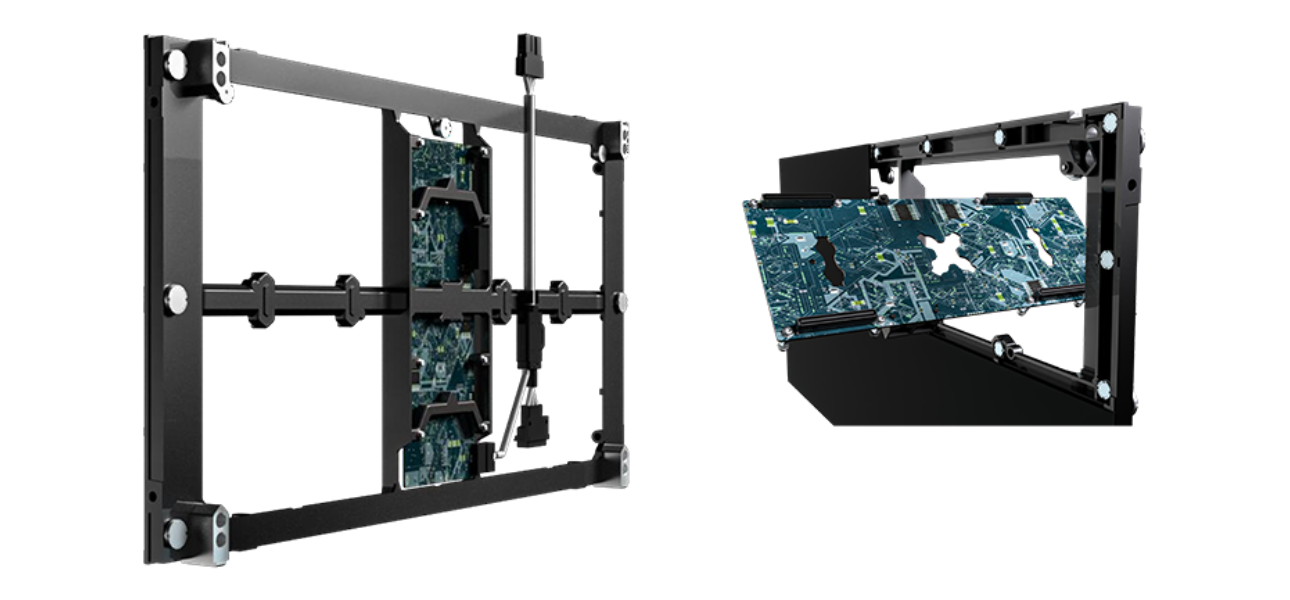

  • 04 _Hidden wiring design

    No externally visible wires ,clean and tidy

  • 06 _Built For High Durability

    front service with high efficient maintenance

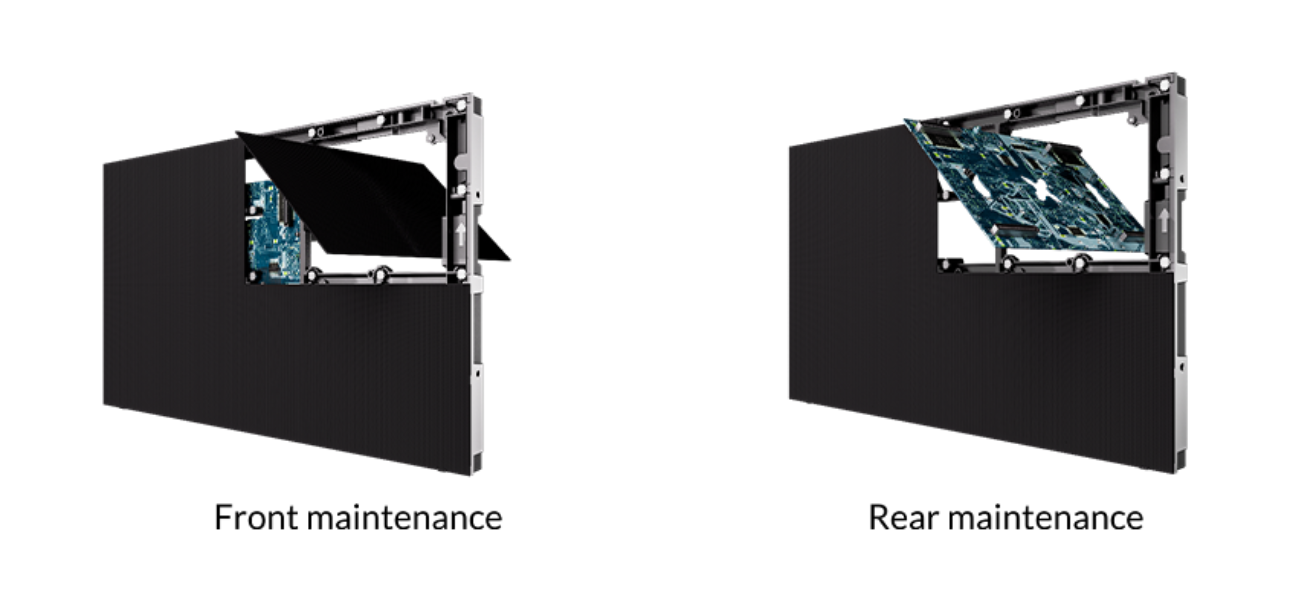

  • 07 _LED Module Front & Rear Access

    GOB technology will make LED Screen waterproof and moisture resistant, high impact resistance, easy maintenance and cleaning. Higher stability with longer lifespan.

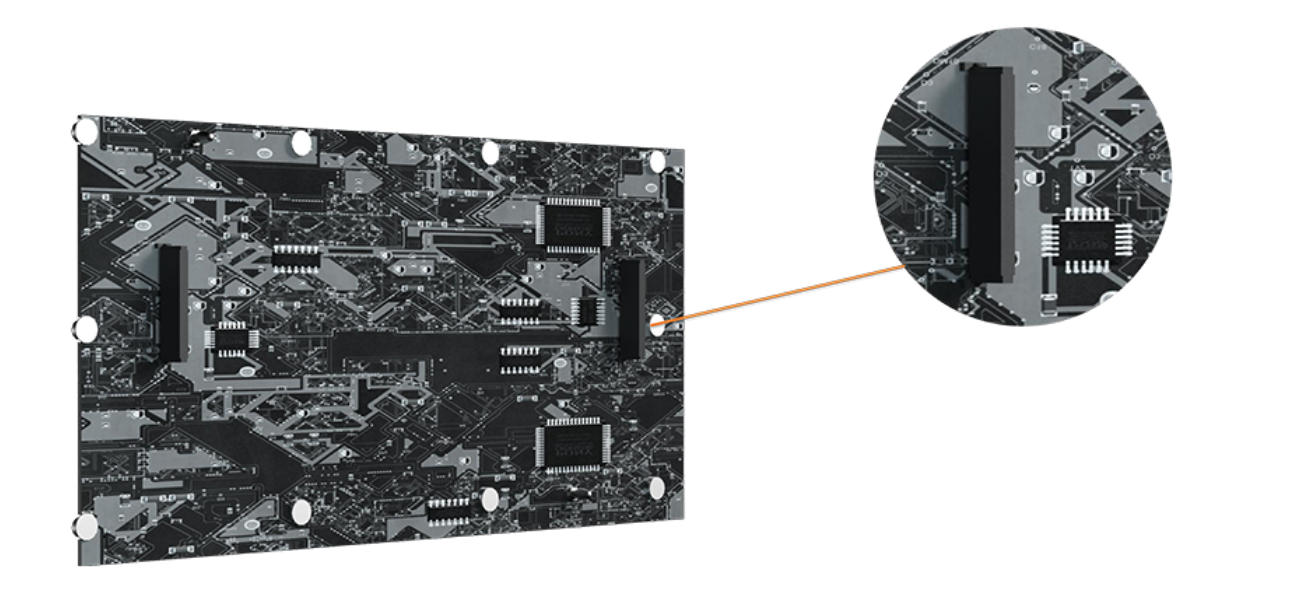

  • 08 _Hard-pin connected modules and Interchangeable left and right

    Enable quick module install and replacement

  • 09 _Energy Saving

    Thanks to Integrated 3-in 1 Hub design >50% Power Consumption Saving 21w/panel Average - 100w/m² Average power consumption 75w /panel Maximum- 300W /m² Maximum power consumption

  • 10 _Memory on Module management Optional

    * Automatic color calibration brings you a better visual experience. * Intelligent module design automatically reads uploaded screen calibration data.

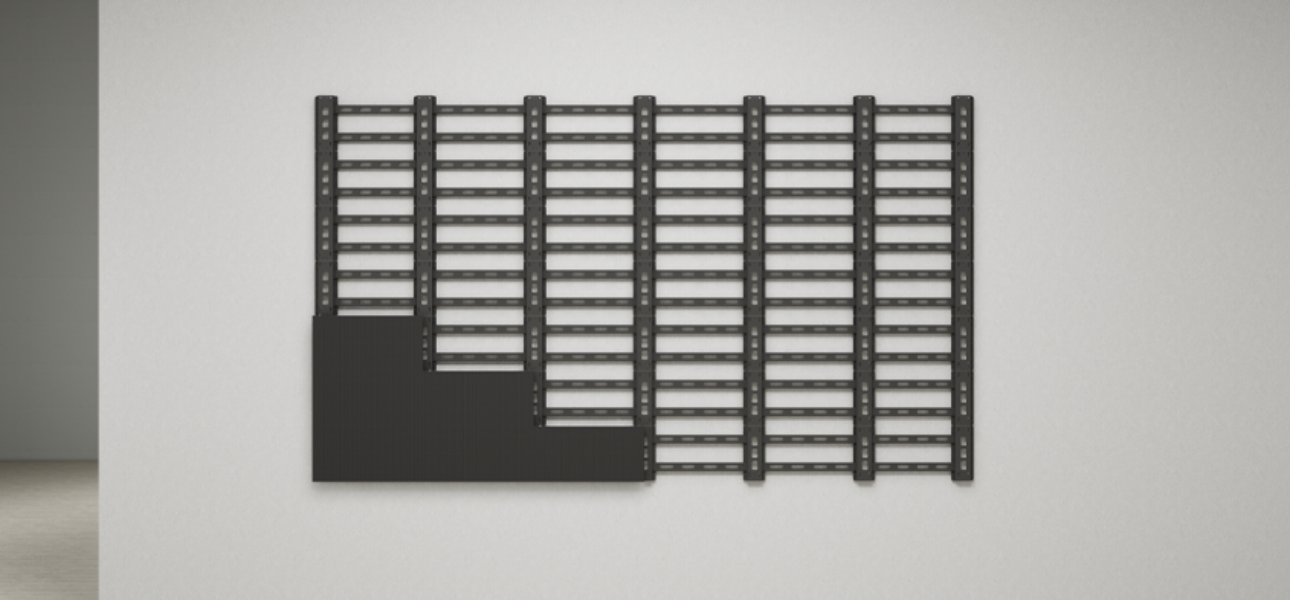

  • 11 _Unique Aluminum Back Brackets

    Self-positioning design, automatic leveling between structures, make sure

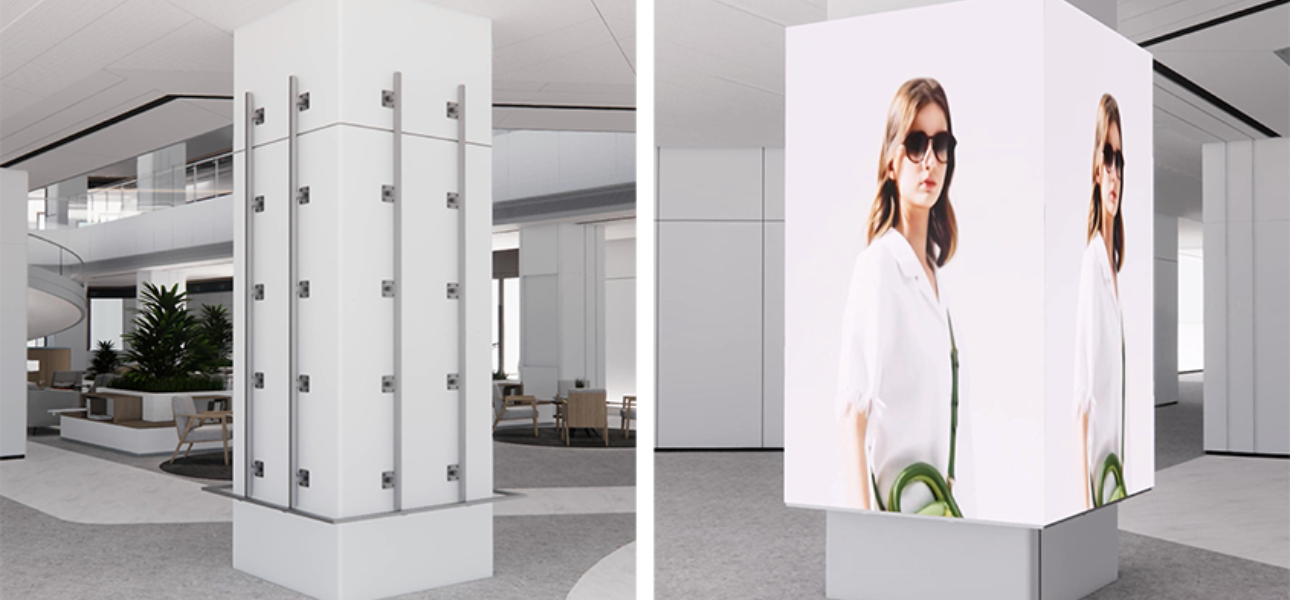

  • 12 _Right-angle Installation

    Ideal for some indoor application with right-angle or coner installations

  • 13 _Accessories





SPRO SERIES 1.25MM SMD INDOOR-S121PRO

  • PIXEL PITCH:1.25mm
  • PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
  • MODULE PIXEL RESOLUTION (H X W):240x135dots
  • CABINET PIXEL RESOLUTION (HXW):480x270dots
  • BRIGHTNESS:400nits
  • REFRESH RATE:3840Hz
  • CABINET SIZE:600x337.5mm (23.62x13.28 inch)
  • CABINET WEIGHT:3.4Kgs ( 7.71 lbs)
  • ACCESSIBILITY:Front Access
  • IP RATING:IP30
  • CONTRAST RATIO: 50000:1
  • WORKING TEMPERATURE: -20℃~+40℃

SPRO SERIES 1.56MM SMD INDOOR-S151PRO

  • PIXEL PITCH:1.5625mm
  • PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
  • MODULE PIXEL RESOLUTION (H X W):192x108dots
  • CABINET PIXEL RESOLUTION (HXW):384x216dots
  • BRIGHTNESS:400-450nits
  • REFRESH RATE:3840Hz
  • CABINET SIZE:600x337.5mm (23.62x13.28 inch)
  • CABINET WEIGHT:3.4Kgs ( 7.71 lbs)
  • ACCESSIBILITY:Front Access
  • IP RATING:IP30
  • CONTRAST RATIO: 50000:1
  • WORKING TEMPERATURE: -20℃~+40℃

SPRO SERIES 1.87MM SMD INDOOR-S181PRO

  • PIXEL PITCH:1.875mm
  • PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
  • MODULE PIXEL RESOLUTION (H X W):160x90dots
  • CABINET PIXEL RESOLUTION (HXW):320x180dots
  • BRIGHTNESS:450-450nits
  • REFRESH RATE:3840Hz
  • CABINET SIZE:600x337.5mm (23.62x13.28 inch)
  • CABINET WEIGHT:3.4Kgs ( 7.71 lbs)
  • ACCESSIBILITY:Front Access
  • IP RATING:IP30
  • CONTRAST RATIO: 50000:1
  • WORKING TEMPERATURE: -20℃~+40℃
