Power cord socket design ; Hidden wiring design, No externally visible wires.

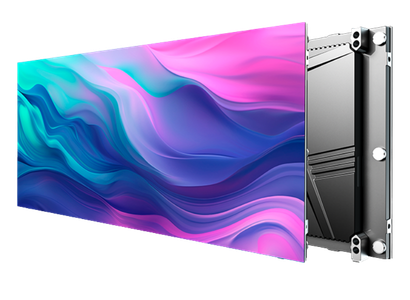

S Series Description
The S series offers high performance in a sleek form factor. It features 3 in 1 hub design, front service modules for efficient hassle-free maintenance, resulting in minimal screen downtime. The all-in-one design of S series panels offer the perfect solution for any installation requiring ultra-high definition such as conference room, chain store, church, auditorium, hotel. and a pixel pitch ranging from 1.2mm to 1.8mm, and low consumption and energy saving, S series is ready to transform any surface into an ultra-high-definition digital canvas.
KEY FEATURES
-

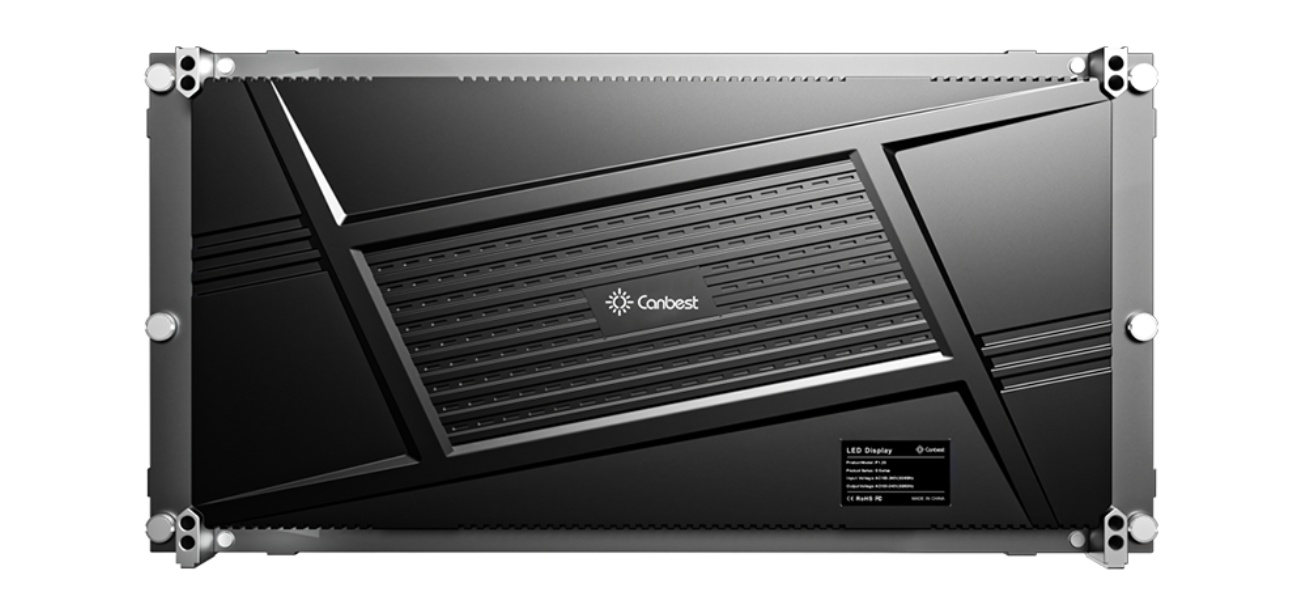

01_Die-cast Aluminum Design
-

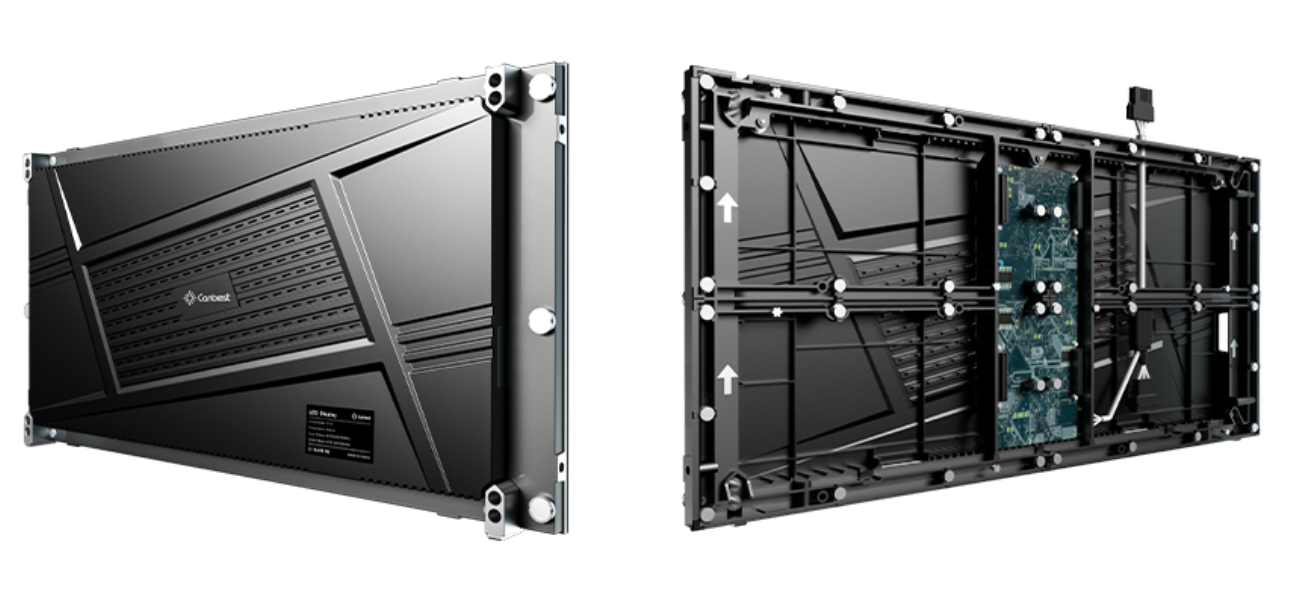

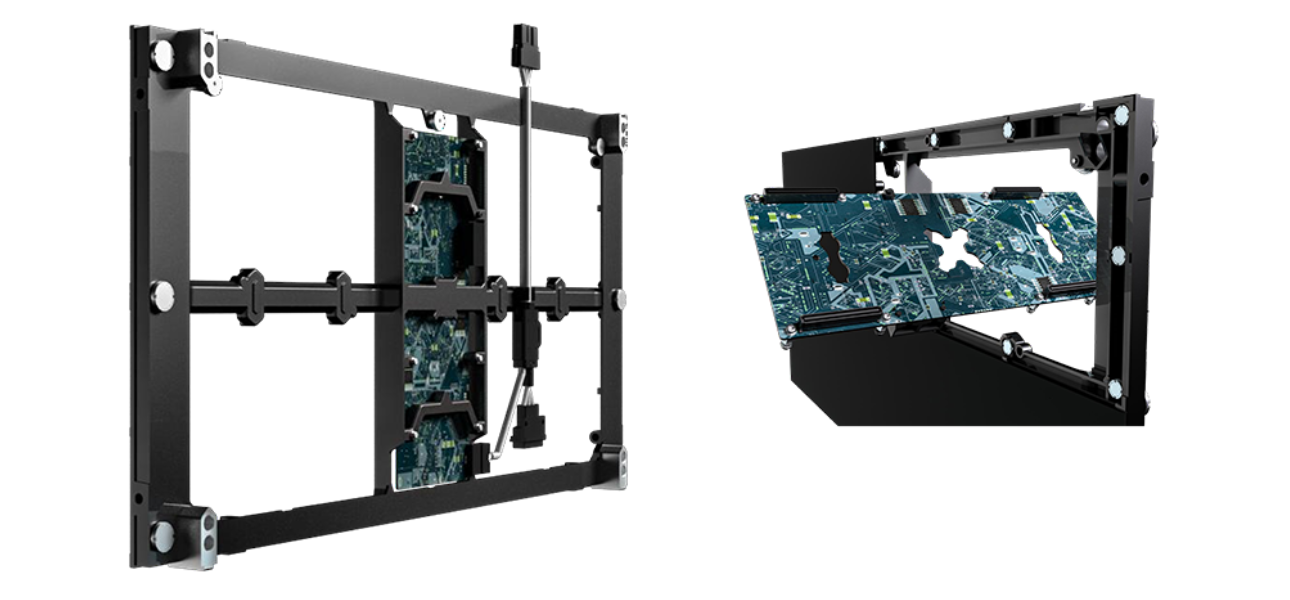

02 _Three-in-one Integrated HUB with Front & Rear Access
-

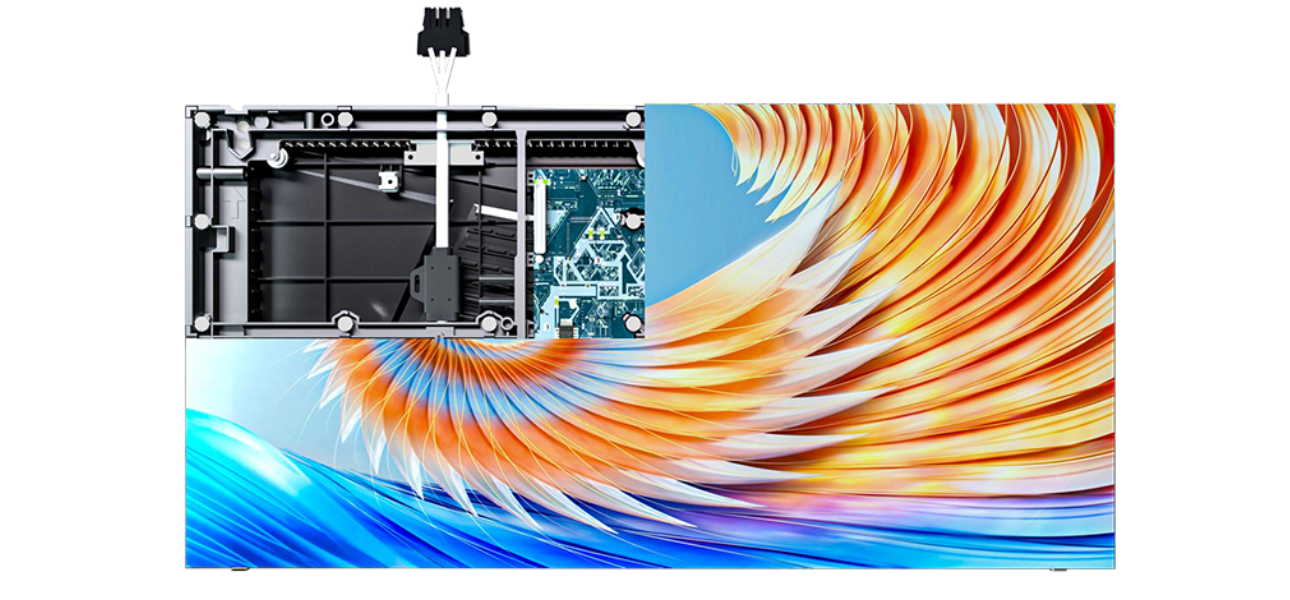

03 _Hidden Wiring Design
-

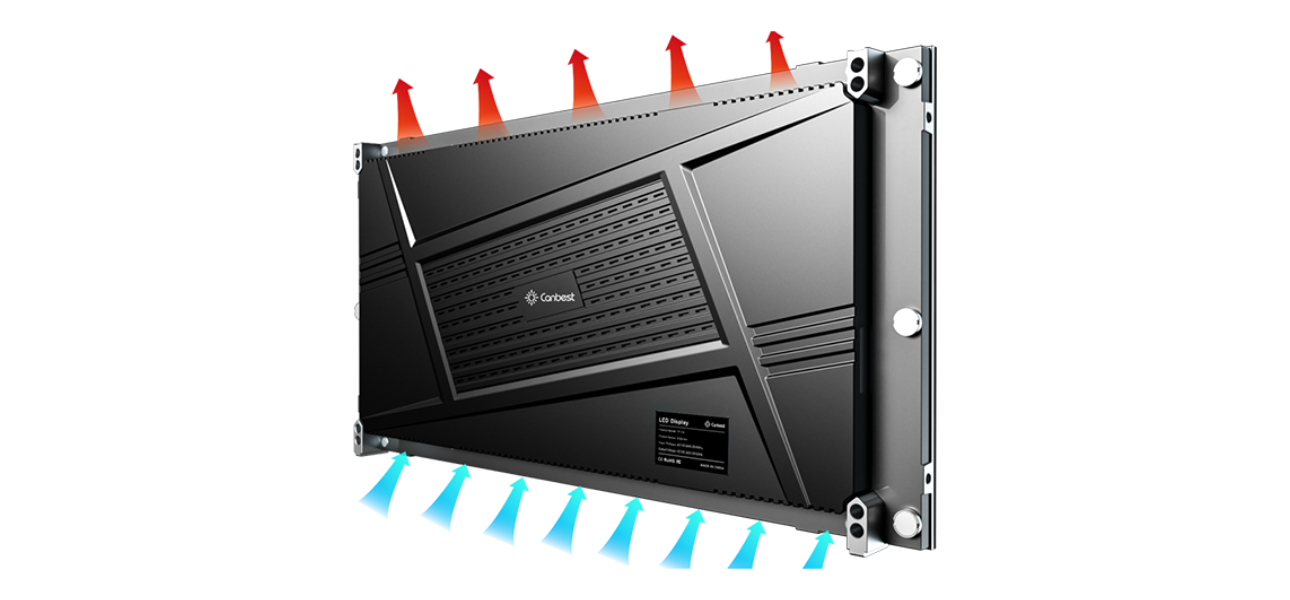

04 _Magnetic Back Cover, Heat Dissipation Design
Fixed strong magnetic x3 Ventilation hole design for faster and more uniform heat dissipation
-

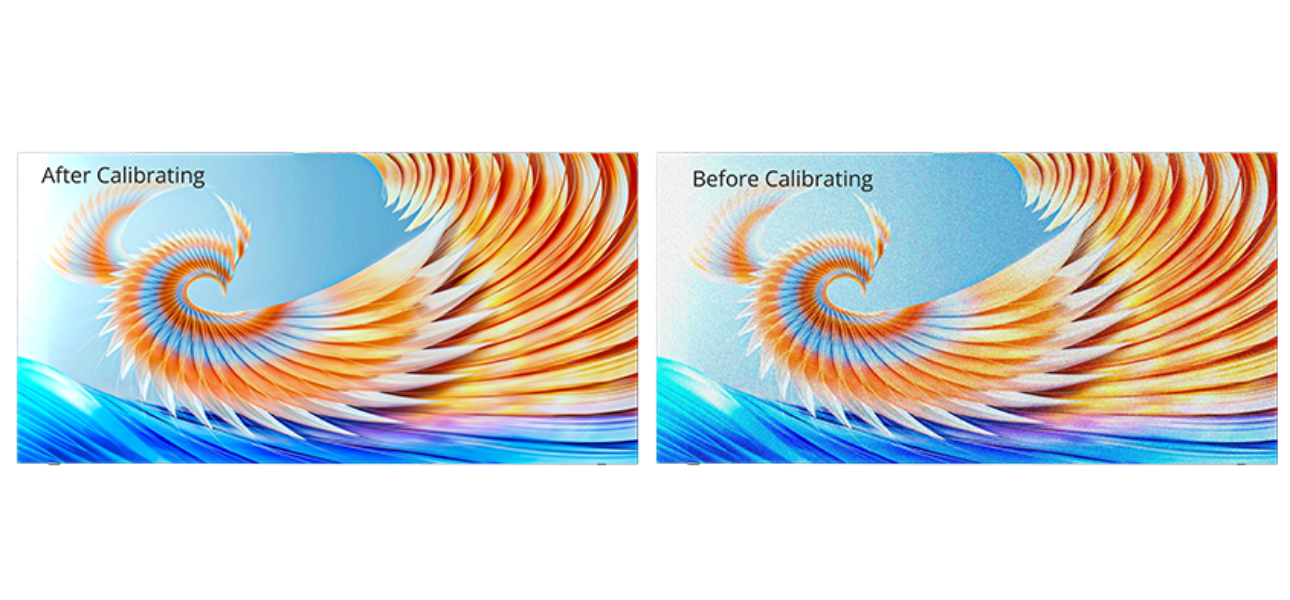

06 _Memory on Module management optional for color calibration
Automatic color calibration brings you a better visual experience. Intelligent module design automatically reads uploaded screen calibration data.
-

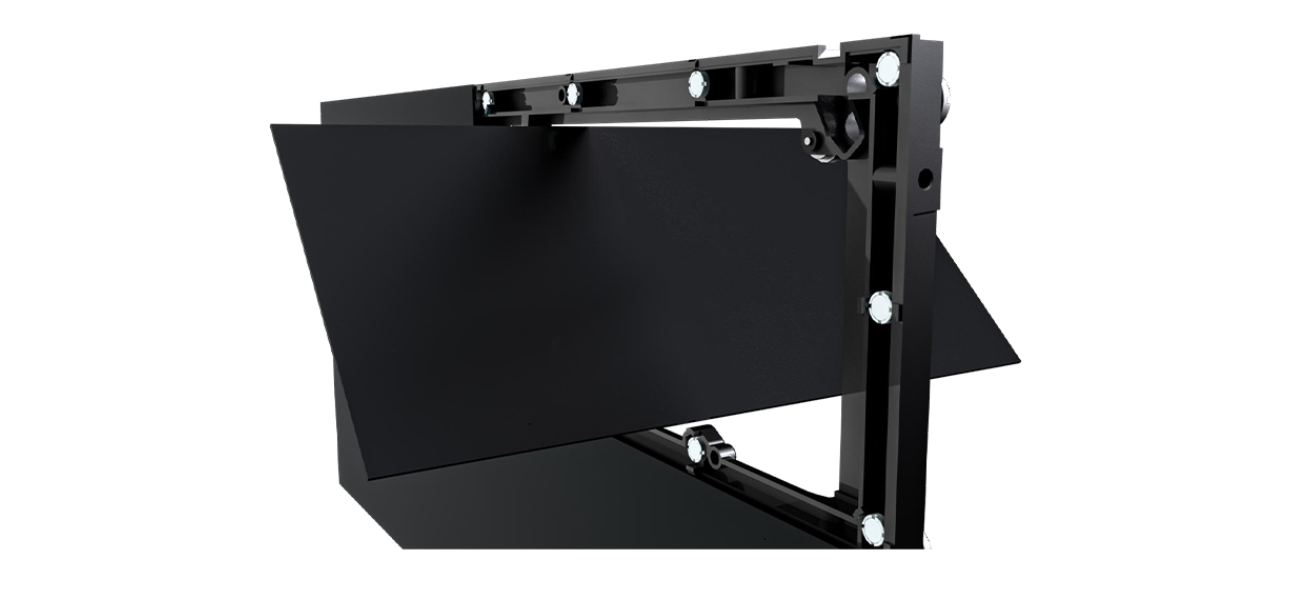

07 _LED Module Front & Rear Access
-

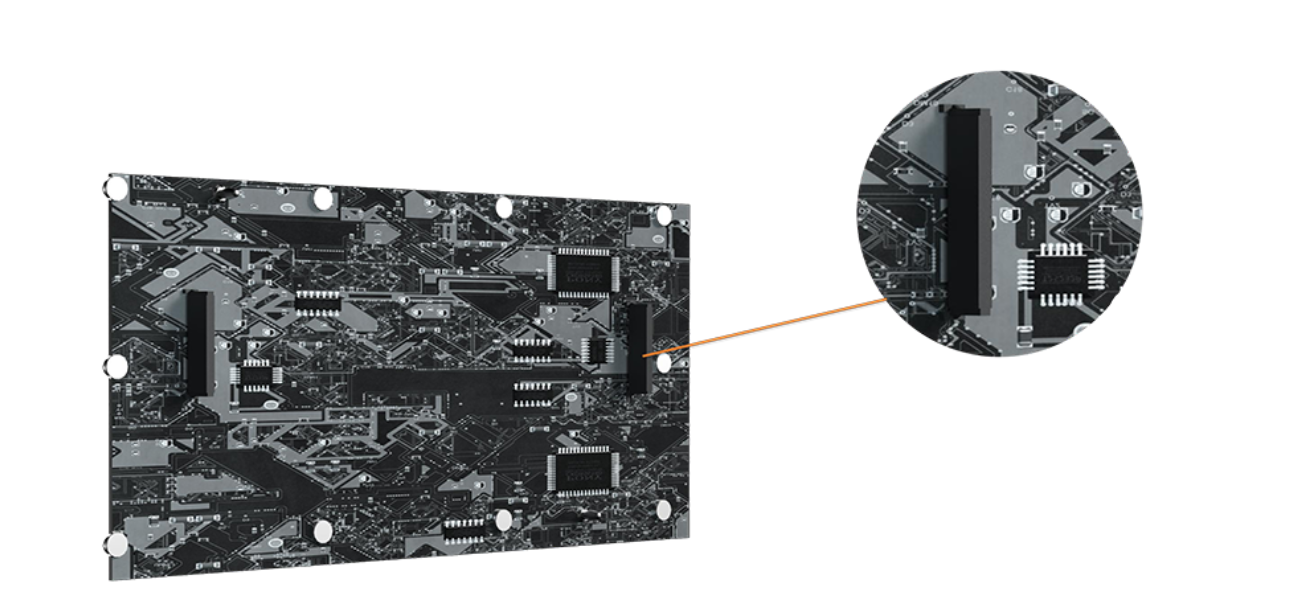

08 _Hard-pin connected modules Interchangeable left and right
Enable quick module install and replacement
-
09 _Energy Saving
Thanks to Integrated 3-in 1 Hub design >50% Power Consumption Saving 3-in-1 : ( Power supply + Receiving Card + Hub Board ) 21w/panel Average 100w/m² Average power consumption 75w /panel Maximum 300W /m² Maximum power consumption
-
12 _Accessories
S SERIES 1.25MM SMD INDOOR-S121
- PIXEL PITCH:1.25mm
- PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
- MODULE PIXEL RESOLUTION (H X W):256x128dots
- CABINET PIXEL RESOLUTION (HXW):512x256dots
- BRIGHTNESS:400nits
- REFRESH RATE:3840Hz
- CABINET SIZE:640x320mm ( 25.19x12.59inch)
- CABINET WEIGHT:3.4Kgs ( 7.49 lbs)
- ACCESSIBILITY:Front Access
- IP RATING:IP30
- CONTRAST RATIO: 50000:1
- WORKING TEMPERATURE: -20℃~+40℃
SPRO SERIES 1.56MM SMD INDOOR-S151PRO
- PIXEL PITCH:1.538mm
- PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
- MODULE PIXEL RESOLUTION (H X W):208x104dots
- CABINET PIXEL RESOLUTION (HXW):416x208dots
- BRIGHTNESS:450nits
- REFRESH RATE:3840Hz
- CABINET SIZE:640x320mm ( 25.19x12.59inch)
- CABINET WEIGHT:3.4Kgs ( 7.49 lbs)
- ACCESSIBILITY:Front & Rear Acess
- IP RATING:IP30
- CONTRAST RATIO: 50000:1
- WORKING TEMPERATURE: -20℃~+40℃
SPRO SERIES 1.87MM SMD INDOOR-S181PRO
- PIXEL PITCH:1.86mm
- PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
- MODULE PIXEL RESOLUTION (H X W):172x86dots
- CABINET PIXEL RESOLUTION (HXW):344x172dots
- BRIGHTNESS:450nits
- REFRESH RATE:3840Hz
- CABINET SIZE:640x320mm ( 25.19x12.59inch)
- CABINET WEIGHT:3.4Kgs ( 7.49 lbs)
- ACCESSIBILITY:Front & Rear Acess
- IP RATING:IP30
- CONTRAST RATIO: 50000:1
- WORKING TEMPERATURE: -20℃~+40℃
