Module, receiving cards and power supplies can be maintained front, no maintenance channels needed ；Greatly improving the installation efficiency, also it will reduce the occurrence of some problems caused by cable.
IP Pro COB Series Description
IP PRO COB Series micro led video wall brings you the ultimate in durability and interactive capabilities. With superior impact, dust, and moisture protection, these displays are designed for spaces where reliability and user engagement are key.
The COB (Chip on Board) technology enhances the resilience of LED panels, making them the ideal choice for high-traffic such as retail space, corporate environments, interactive exhibits, education and training, shopping mail.
IP PRO COB Series features 10000:1 contrast ratio, up to 600nits and 170° viewing angle, delivering vivid image even in bright condition and the recommended pixel pitch is P0.7, P0.9 ,P1.25, P1.56 ,P1.875, catering to fine pitch needs for ultra-high-definition visuals
KEY FEATURES
-
01_Full Flip-chip COB Design
-
02 _16:9 Golden Ratio
Standard 27.5" Size FHD/4K Pixel to Pixel Resolutions
-
03 _High Protection Package Technology
can be cleaned directly with wet cloth, completely solve the damage caused by bumps, impacts, moisture, salt spray corrosion, electrostatic breakdown etc.
-
04 _0.3mm Super thin glue, unique encapsulation tech
0.3mm ultra-thin colloid Liquid glue + filling process long-term use, Non-deformation module, high consistency and high protection
-

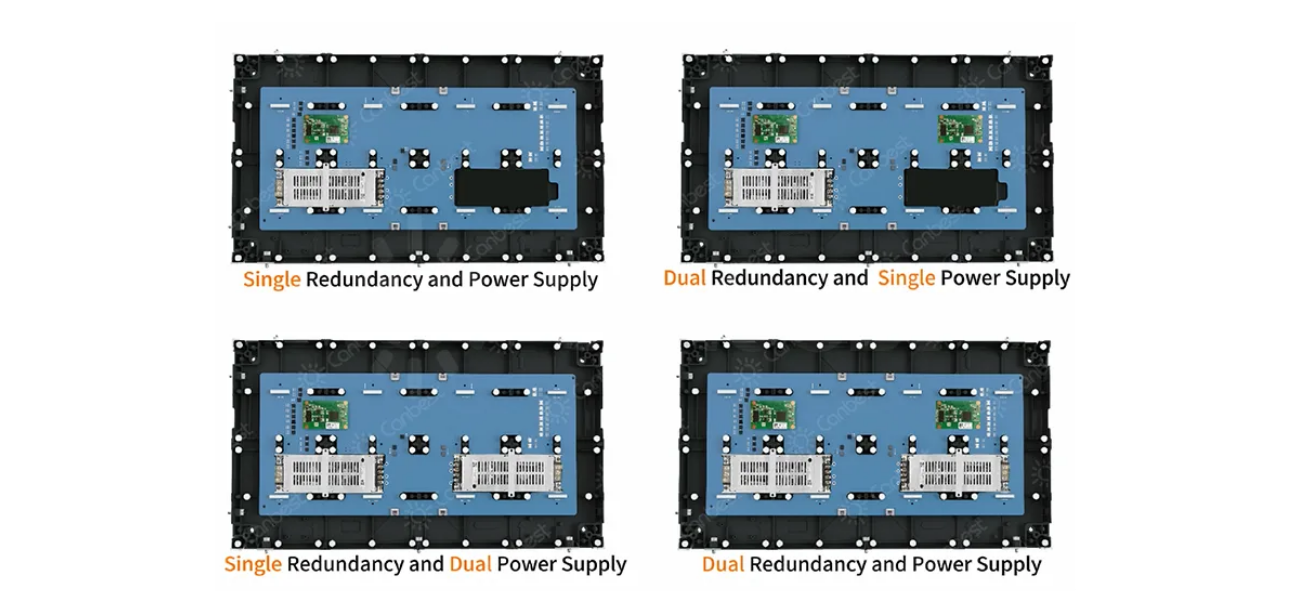

05 _Three-in-one Integrated HUB With Front & Rear Access
-
06 _Totally Cable-less Connection
Modular design and work stable
-
07 _Single Module Power Consumption 75W
P0.9 for common negative energy-saving design, P1.2 and above for common positive voltage divider design
-
08 _Multiple installation
Support aluminum base stacking, wall mounted
-
09 _Accessories
IP PRO COB SERIES 0.7MM INDOOR-IP071PRO COB
- PIXEL PITCH:0.7mm
- PIXEL CONFIGURATION & PACKAGE:COB
- MODULE PIXEL RESOLUTION (H X W):240x135dots
- CABINET PIXEL RESOLUTION (H X W):480x270dots
- BRIGHTNESS:400nits
- REFRESH RATE:3840Hz
- CABINET SIZE:600x337.5mm (23.62x13.28 inch)
- CABINET WEIGHT:3.4Kgs ( 7.71 lbs)
- ACCESSIBILITY:Front Access
- IP RATING:IP30
- CONTRAST RATIO: 20000:1
- WORKING TEMPERATURE: -20℃~+40℃
IP PRO COB SERIES 0.9MM INDOOR-IP091PRO COB
- PIXEL PITCH:0.9753mm
- PIXEL CONFIGURATION & PACKAGE:COB
- MODULE PIXEL RESOLUTION ( H X W):192x108dots
- CABINET PIXEL RESOLUTION ( H X W):384x216dots
- BRIGHTNESS:400-450nits
- REFRESH RATE:3840Hz
- CABINET SIZE:600x337.5mm (23.62x13.28 inch)
- CABINET WEIGHT:3.4Kgs ( 7.71 lbs)
- ACCESSIBILITY:Front Access
- IP RATING:IP30
- CONTRAST RATIO: 20000:1
- WORKING TEMPERATURE: -20℃~+40℃
IP PRO COB SERIES 1.25MM INDOOR-IP121PRO COB
- PIXEL PITCH:1.25mm
- PIXEL CONFIGURATION & PACKAGE:COB
- MODULE PIXEL RESOLUTION (H X W):240x135dots
- CABINET PIXEL RESOLUTION (H X W):480x270dots
- BRIGHTNESS:450-450nits
- REFRESH RATE:3840Hz
- CABINET SIZE:600x337.5mm (23.62x13.28 inch)
- CABINET WEIGHT:3.4Kgs ( 7.71 lbs)
- ACCESSIBILITY:Front Access
- IP RATING:IP30
- CONTRAST RATIO: 20000:1
- WORKING TEMPERATURE: -20℃~+40℃
IP SPRO COB SERIES 1.56MM INDOOR-IP151PRO COB
- PIXEL PITCH:1.5625mm
- PIXEL CONFIGURATION & PACKAGE:COB
- MODULE PIXEL RESOLUTION ( H X W):192x108dots
- CABINET PIXEL RESOLUTION ( H X W):384x216dots
- BRIGHTNESS:400-450nits
- REFRESH RATE:3840Hz
- CABINET SIZE:600x337.5mm (23.62x13.28 inch)
- CABINET WEIGHT:3.4Kgs ( 7.71 lbs)
- ACCESSIBILITY:Front Access
- IP RATING:IP30
- CONTRAST RATIO: 20000:1
- WORKING TEMPERATURE: -20℃~+40℃
IP PRO COB SERIES 1.87MM INDOOR-IP181PRO COB
- PIXEL PITCH:1.875mm
- PIXEL CONFIGURATION & PACKAGE:COB
- MODULE PIXEL RESOLUTION ( H X W):160x90dots
- CABINET PIXEL RESOLUTION ( H X W):320x180dots
- BRIGHTNESS:450-450nits
- REFRESH RATE:3840Hz
- CABINET SIZE:600x337.5mm (23.62x13.28 inch)
- CABINET WEIGHT:3.4Kgs ( 7.71 lbs)
- ACCESSIBILITY:Front Access
- IP RATING:IP30
- CONTRAST RATIO: 20000:1
- WORKING TEMPERATURE: -20℃~+40℃
