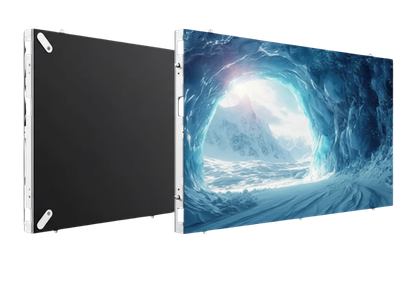

IP COB Series Description

Blog Image

The IP COB Series is a state-of-the-art Micro LED video wall designed for high-performance applications, featuring dual backup support for both power supply and receiving card, ensuring stable and uninterrupted operation. With pixel pitches of P0.7, P0.9, P1.25, and P1.56, and a 600×337.5mm panel size in a 16:9 aspect ratio, it delivers ultra-high-definition visuals, achieving 8K resolution with a 10×10 panel configuration at P0.7.

Built with COB (Chip-on-Board) technology and a common cathode design, the IP COB Series offers superior brightness, high contrast, and exceptional energy efficiency while maintaining a cool screen temperature for long-lasting durability. Engineered for front installation and maintenance, it simplifies servicing while supporting wall-mounted, hanging, and curved installations, making it a versatile solution for various industries.

Ideal for control rooms, CCTV and surveillance centers, broadcast studios, corporate boardrooms, high-end retail displays, exhibition halls, medical visualization, luxury home theaters, universities, and houses of worship, the IP COB Series provides a seamless, glare-free viewing experience with a smooth, flicker-free display. It comes with a complete structural kit, ensuring quick and easy deployment while maintaining exceptional performance in mission-critical environments where clarity, reliability, and precision are paramount.


KEY FEATURES

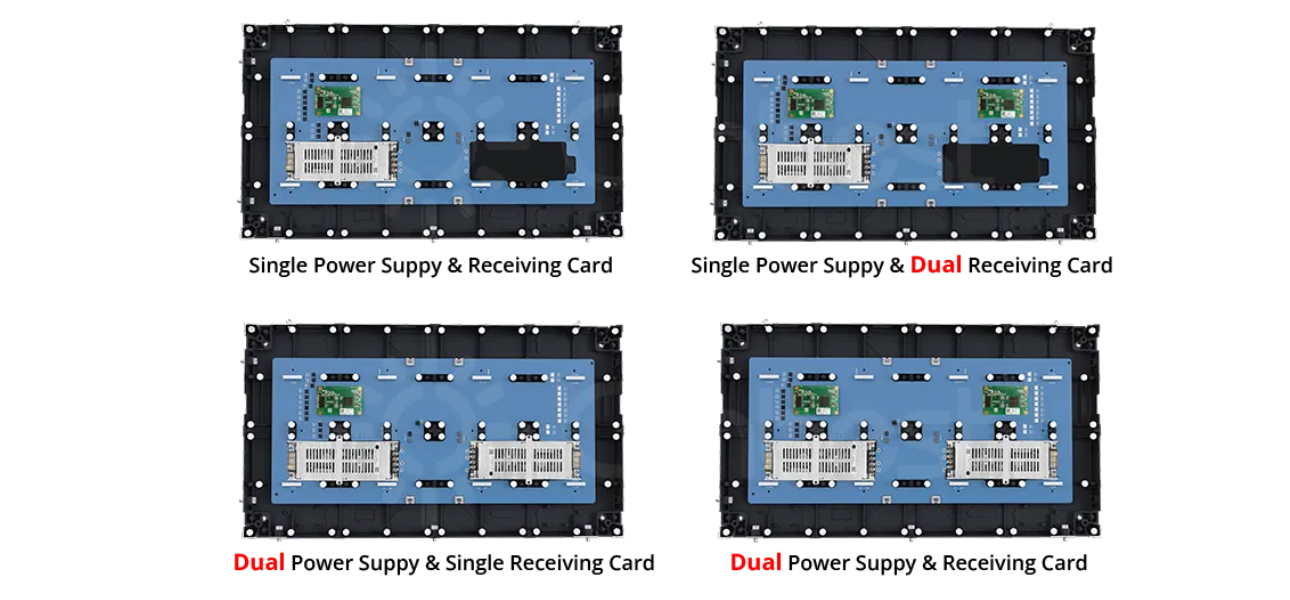

  • 01_Dual Backup Available

    Supports multiple backup options as per application requirements (P0.9/P1.25/P1.5) , including dual power supply and single redundancy, ensuring stable and uninterrupted screen performance.

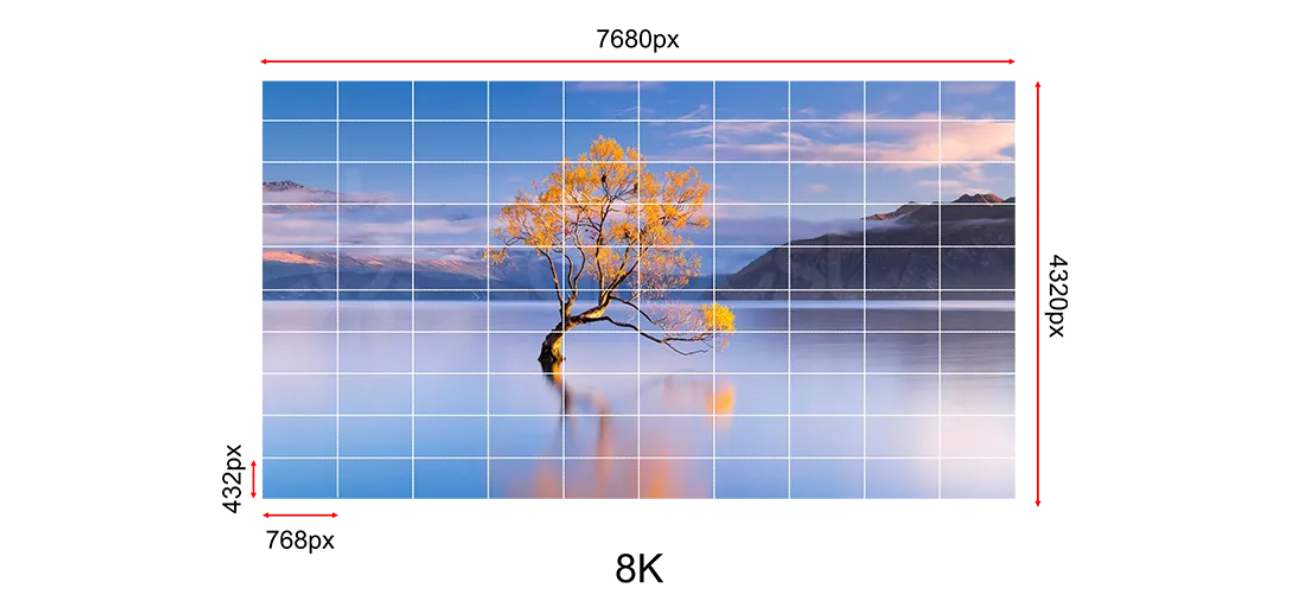

  • 02 _Effortless 8K Brilliance

    A 10x10 panel setup with P0.7 effortlessly achieves 8K resolution, streamlining installation and enabling rapid deployment of large-scale displays.

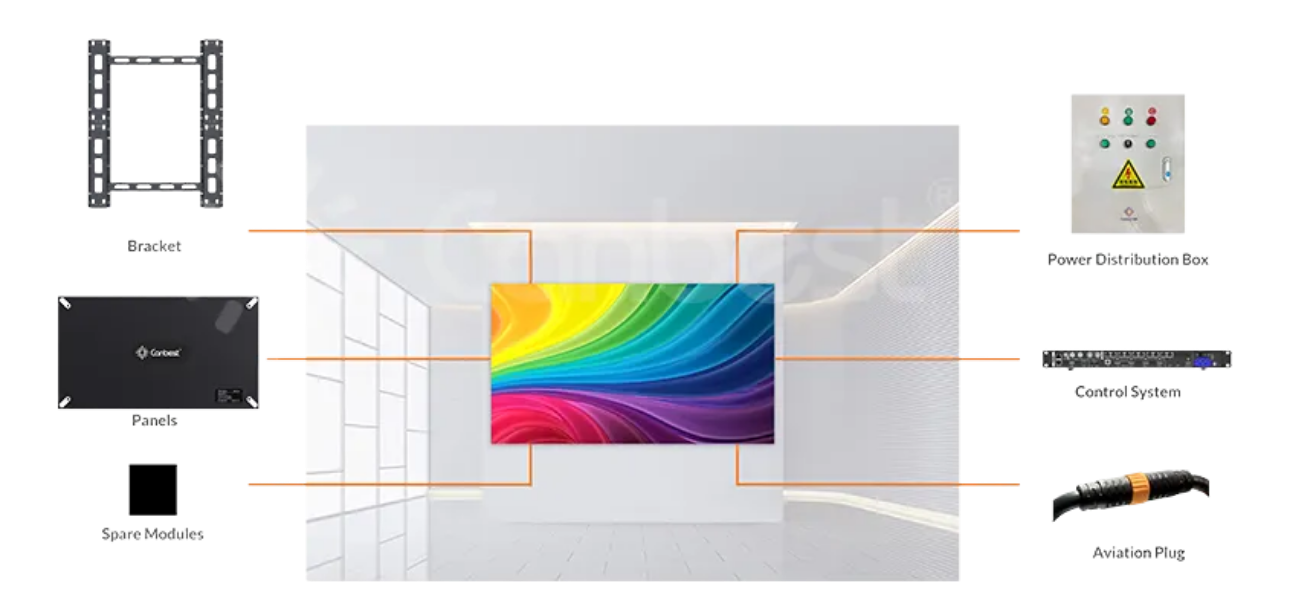

  • 03 _All in one Package

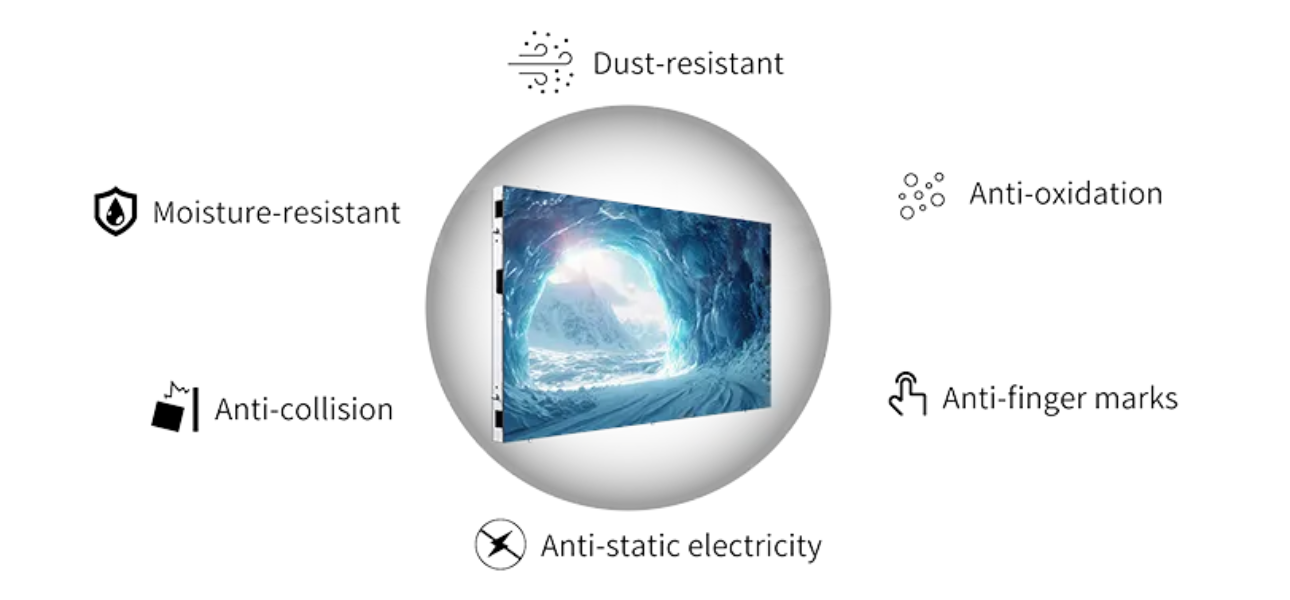

  • 04 _All - round Protection

    Designed for harsh conditions, the DM COB Series ensures superior durability, resisting impact, dust, and moisture for reliable, long-term performance.

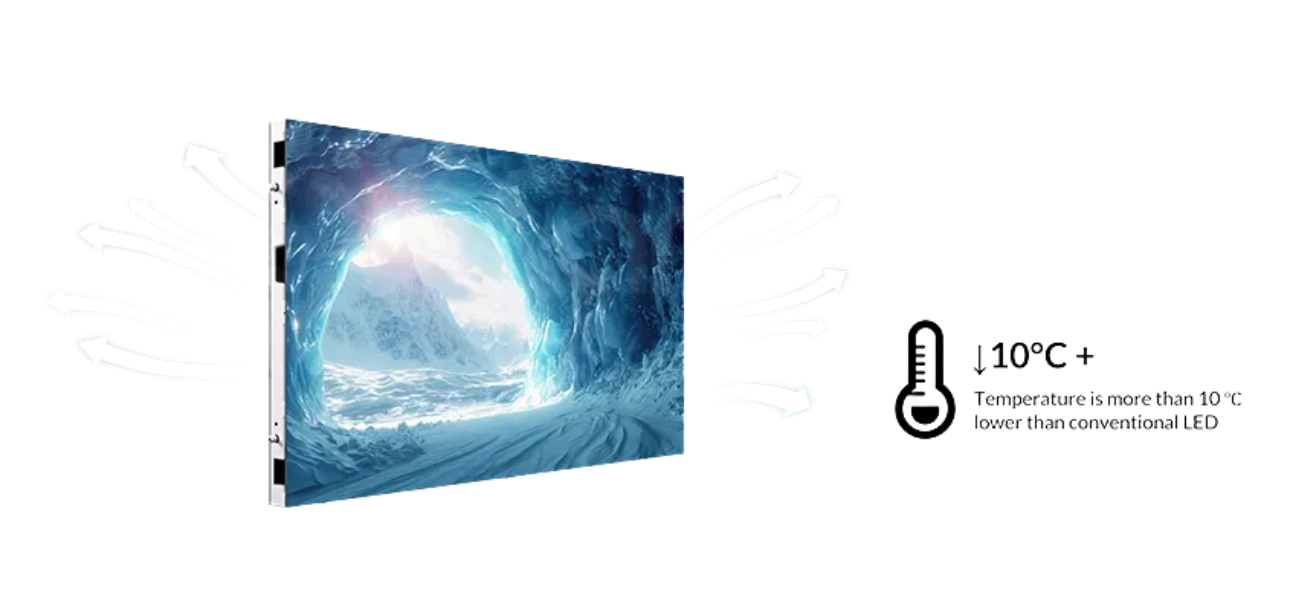

  • 05 _Cool Screen

    Featuring flip-chip COB and common cathode technologies, the DM Series remains cool under pressure, ensuring seamless, vibrant visuals with ease.

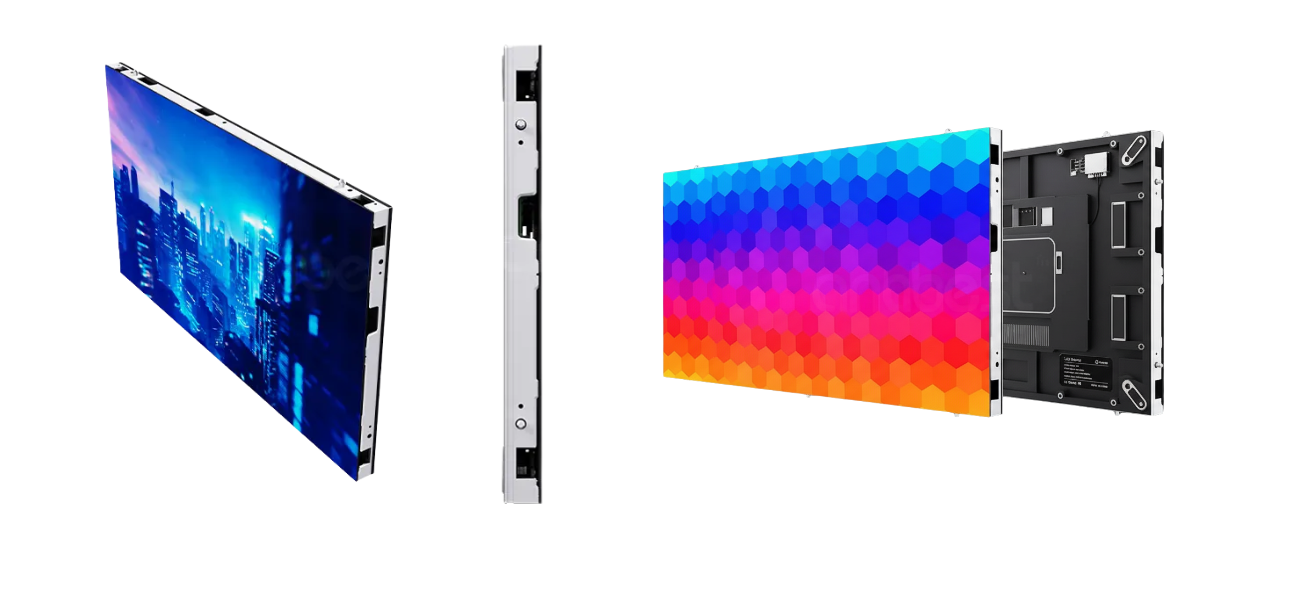

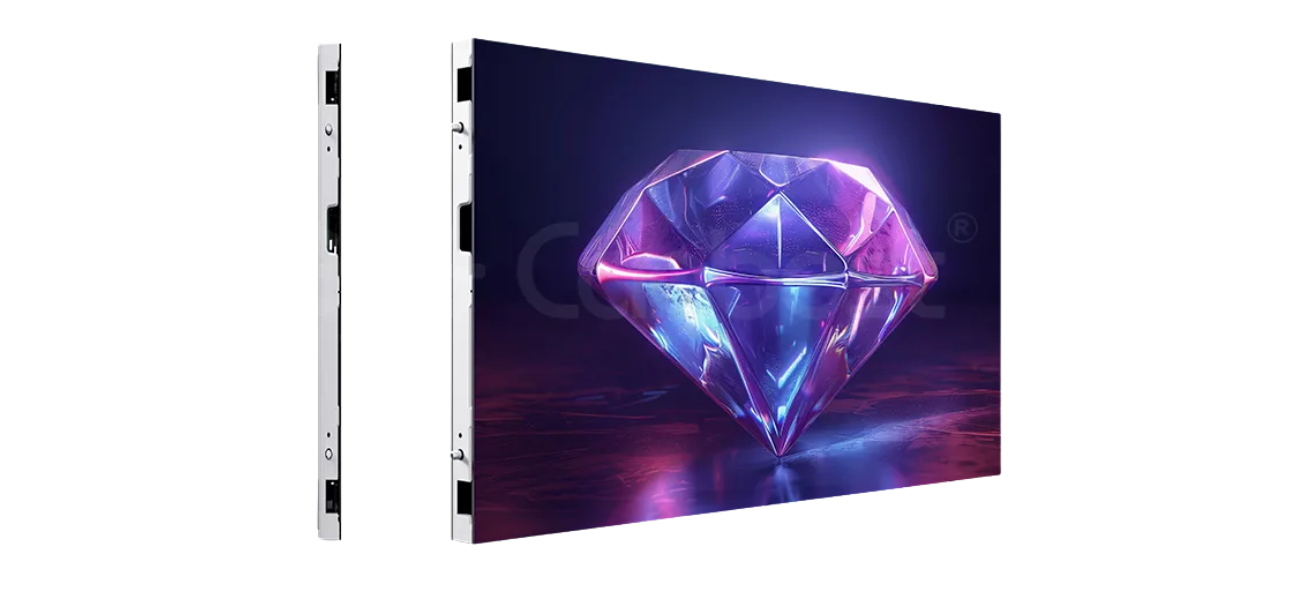

  • 06 _Ultra Slim and Light Design

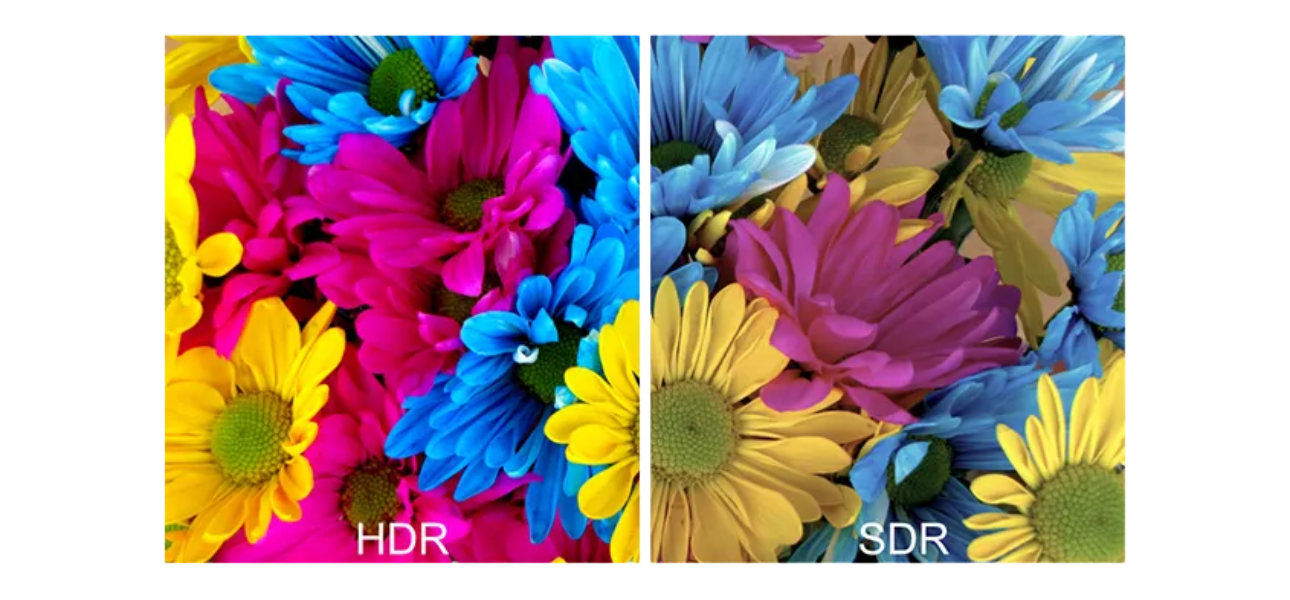

  • 07 _High Dynamic Range (HDR) Support

    Enjoy vibrant colors and true-to-life contrast with improved brightness and shadow detail, creating an immersive visual experience for our customers.

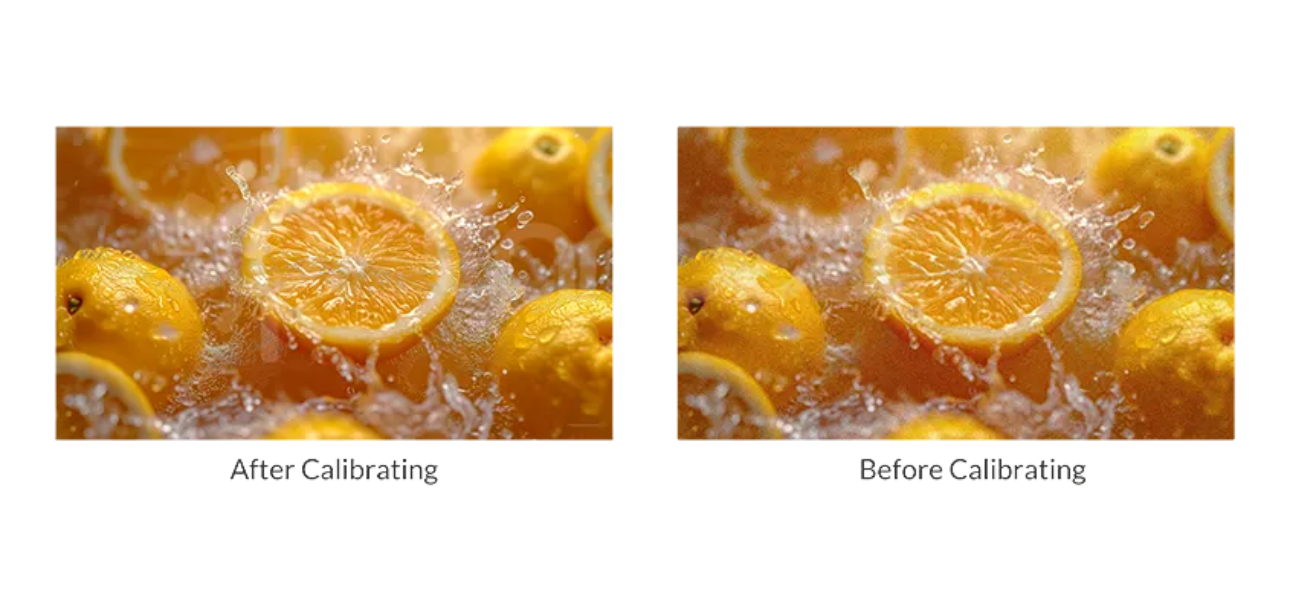

  • 08 _Memory On Module Management

    Memory on Module management is optional for color calibration. Automatic color calibration brings you a better visual experience. Intelligent module design automatically reads uploaded screen calibration data.

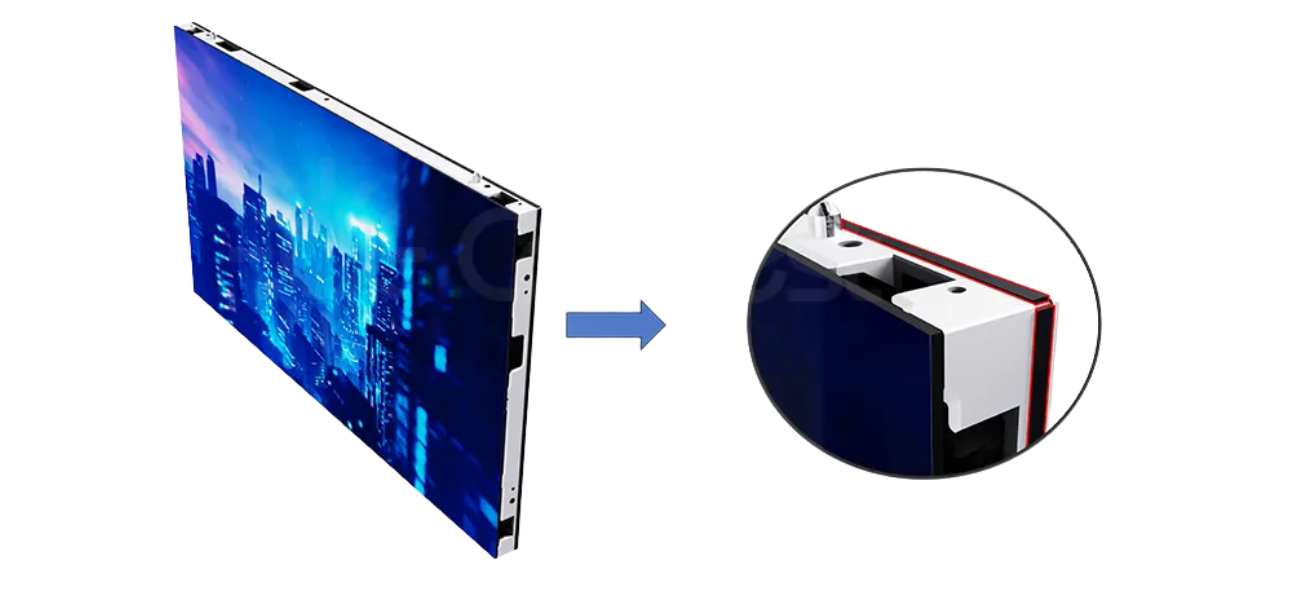

  • 09 _High Uniform With Light Leakage-proof Strip

    The trip can effectively prevent light leakage from the gaps between panels, ensures the uniform brightness and enhance the clarity and color performance .

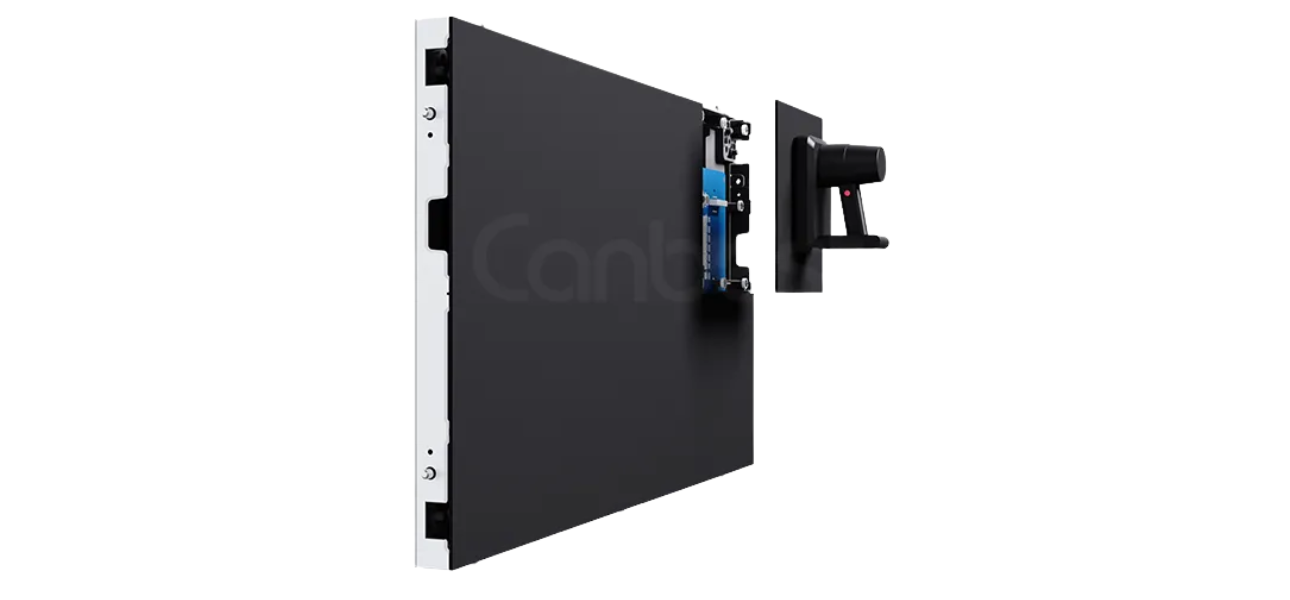

  • 10 _Convenient Maintenance

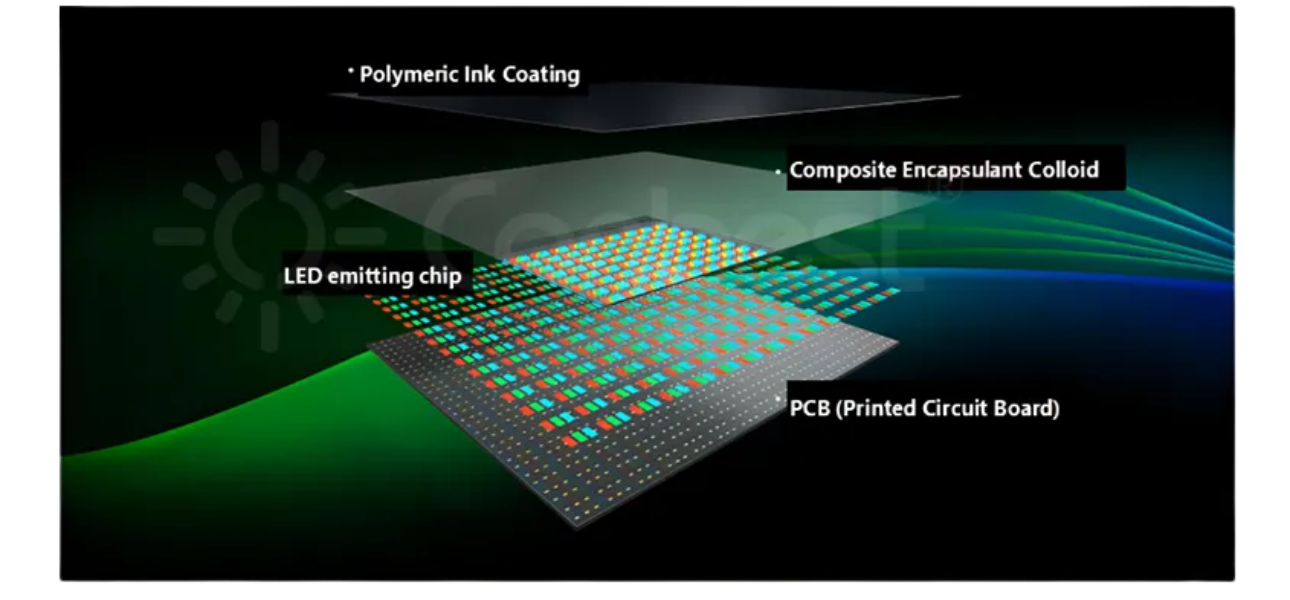

  • 11 _Unmatched Deep Blacks

    Micro LED technology delivers high brightness and efficient heat dissipation. The surface is coated with a durable black polymer material, ensuring exceptional black consistency.

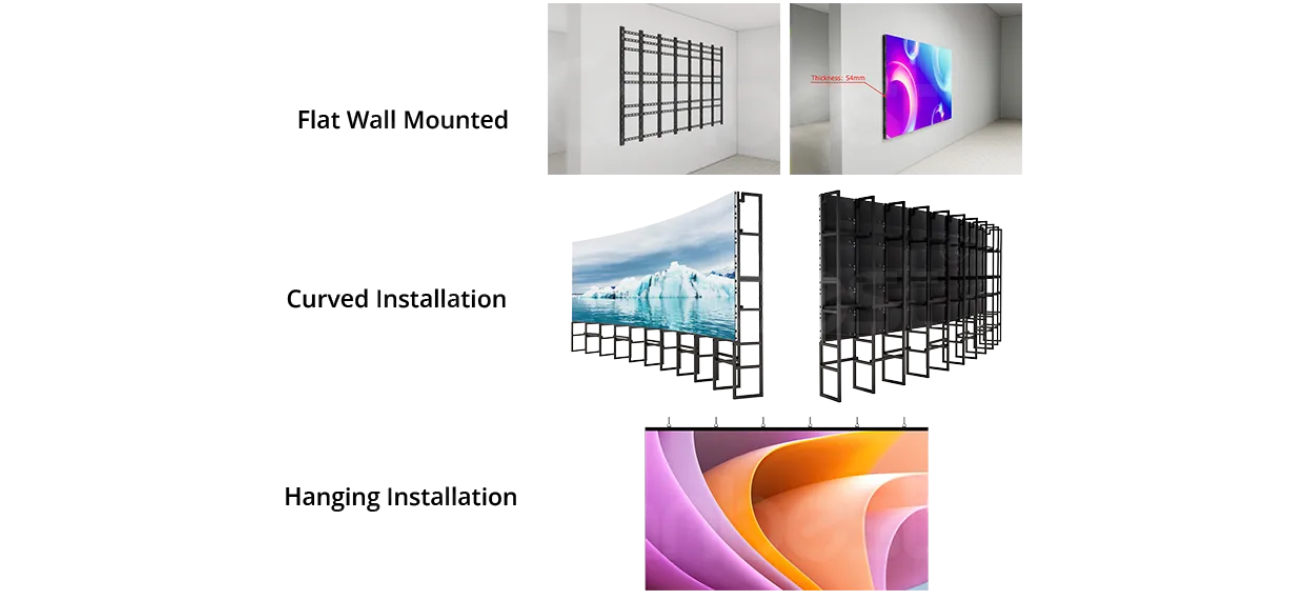

  • 12 _Flexible Installation Types

    Power and data redundancy optional ,trouble-free for important occasions ,safe and reliable.

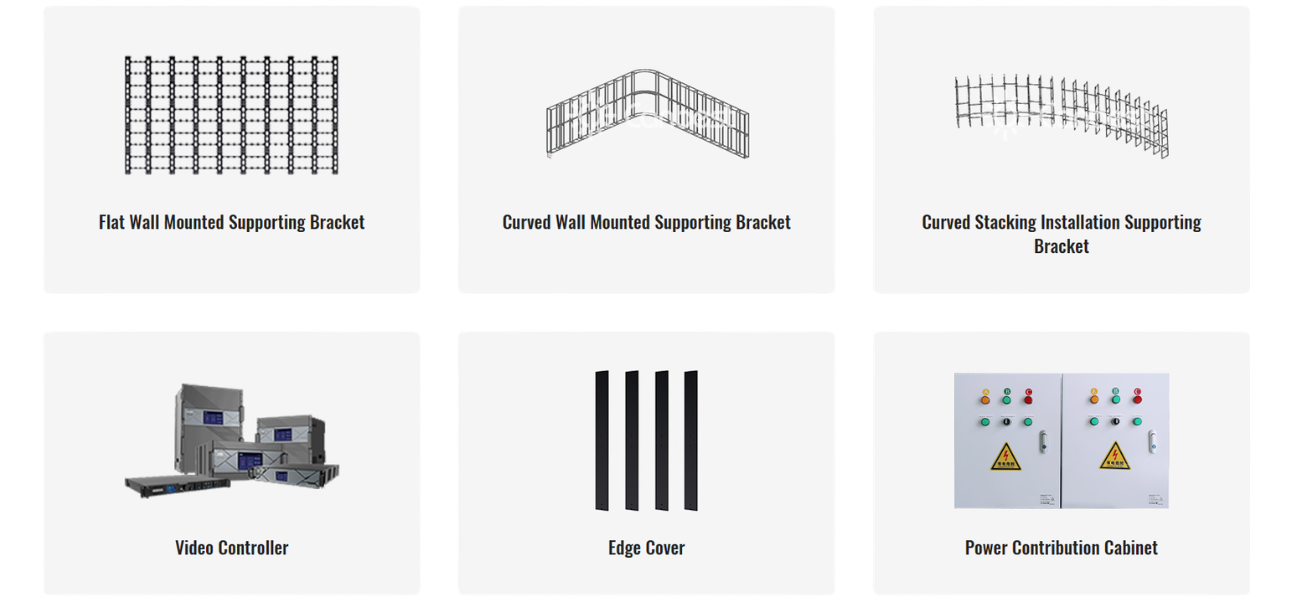

  • 13 _Accessories





IP SERIES 0.7MM INDOOR-IP071

  • PIXEL PITCH:0.7mm
  • PIXEL CONFIGURATION & PACKAGE:COB
  • MODULE PIXEL RESOLUTION (H X W):240x135dots
  • CABINET PIXEL RESOLUTION (H X W):400x270dots
  • BRIGHTNESS:600-800nits
  • REFRESH RATE:3840Hz
  • CABINET SIZE:600*337.5mm
  • CABINET WEIGHT:4Kgs ( 8.82 lbs)
  • ACCESSIBILITY:Front Access
  • IP RATING:IP30
  • CONTRAST RATIO: 20000:1
  • WORKING TEMPERATURE: -20℃~+40℃

IP COB SERIES 0.9MM INDOOR-IP091

  • PIXEL PITCH:0.9753mm
  • PIXEL CONFIGURATION & PACKAGE:COB
  • MODULE PIXEL RESOLUTION ( H X W):192*108dots
  • CABINET PIXEL RESOLUTION ( H X W):384x216dots
  • BRIGHTNESS:600-800nits
  • REFRESH RATE:3840Hz
  • CABINET SIZE:600x337.5mm (23.62x13.28 inch)
  • CABINET WEIGHT:4Kgs ( 8.82lbs)
  • ACCESSIBILITY:Front Access
  • IP RATING:IP30
  • CONTRAST RATIO: 20000:1
  • WORKING TEMPERATURE: -20℃~+40℃

IP COB SERIES 1.25MM INDOOR-IP121

  • PIXEL PITCH:1.25mm
  • PIXEL CONFIGURATION & PACKAGE:COB
  • MODULE PIXEL RESOLUTION ( H X W):240x135dots
  • CABINET PIXEL RESOLUTION ( H X W):480x270dots
  • BRIGHTNESS:600-800nits
  • REFRESH RATE:3840Hz
  • CABINET SIZE:600x337.5mm (23.62x13.28 inch)
  • CABINET WEIGHT:4Kgs ( 8.82lbs)
  • ACCESSIBILITY:Front Access
  • IP RATING:IP30
  • CONTRAST RATIO: 20000:1
  • WORKING TEMPERATURE: -20℃~+40℃

IP COB SERIES 1.56MM INDOOR-IP151

  • PIXEL PITCH:1.5625mm
  • PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
  • MODULE PIXEL RESOLUTION ( H X W):192x108dots
  • CABINET PIXEL RESOLUTION ( H X W):384x216dots
  • BRIGHTNESS:600-800nits
  • REFRESH RATE:3840Hz
  • CABINET SIZE:600x337.5mm (23.62x13.28 inch)
  • CABINET WEIGHT:4Kgs ( 8.82lbs)
  • ACCESSIBILITY:Front Access
  • IP RATING:IP30
  • CONTRAST RATIO: 20000:1
  • WORKING TEMPERATURE: -20℃~+40℃
