Support wall mounted, hanging installation, right-angle installation and some other creative installation.

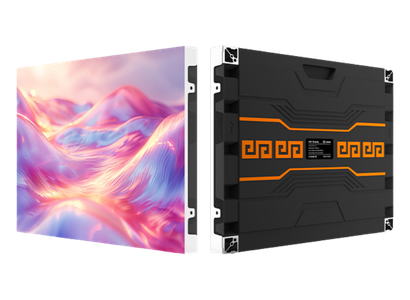

IP FIW Series Description
The FIW Series is an ETL-certified indoor LED video wall, designed to meet strict North American safety and electrical standards, ensuring reliable performance and smooth project approvals across the United States and Canada.
Engineered as an ultra-high-resolution, cable-less LED display, the FIW Series features an all-in-one cabinet design that simplifies installation while delivering exceptional image quality. With pixel pitches ranging from P1.2 to P2.5, it supports both 2K and 4K display configurations, making it an ideal solution for corporate lobbies, churches, conference rooms, retail environments, and shopping malls.
The front-service modular structure, combined with edge covers and wall-mounting systems, allows for quick installation and convenient maintenance. Available in both SMD and GOB technologies, the FIW Series provides durable, dependable, and immersive indoor visual performance for professional display applications.
KEY FEATURES
-

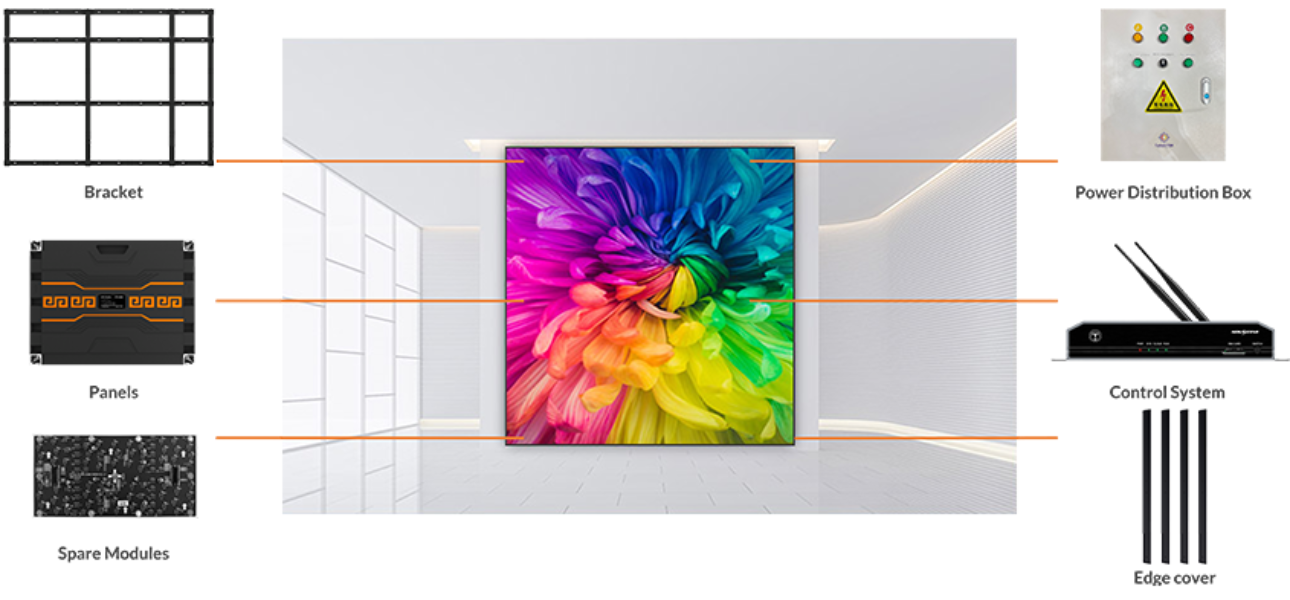

01_All in one Package
-

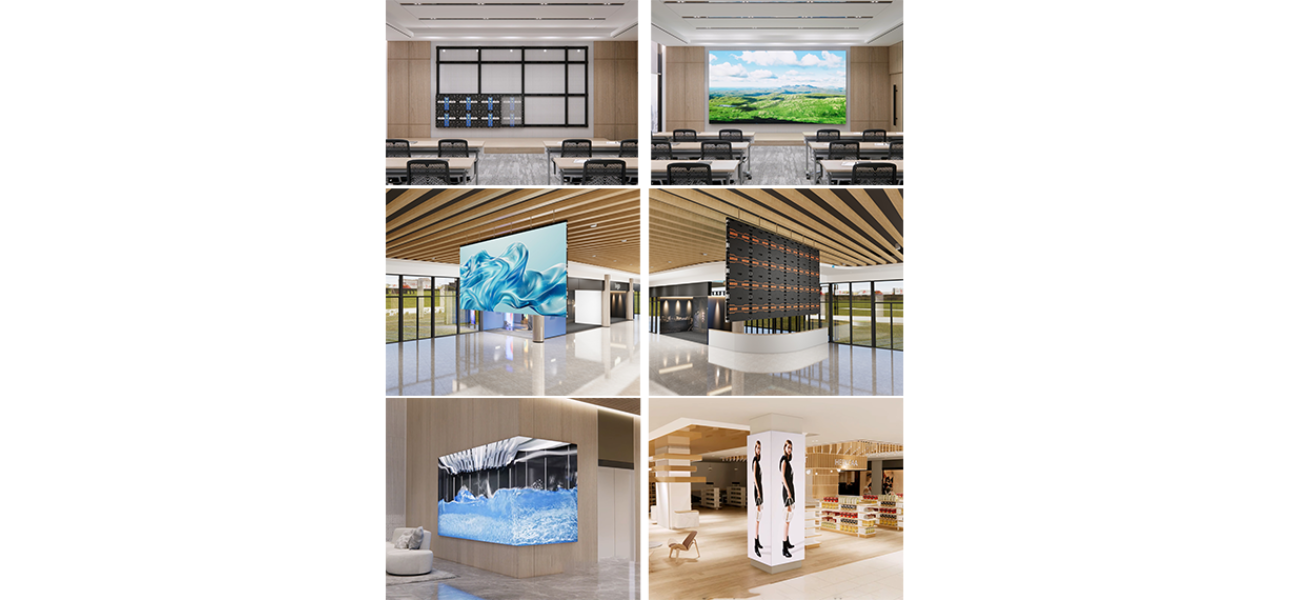

02 _Creative Installation
-

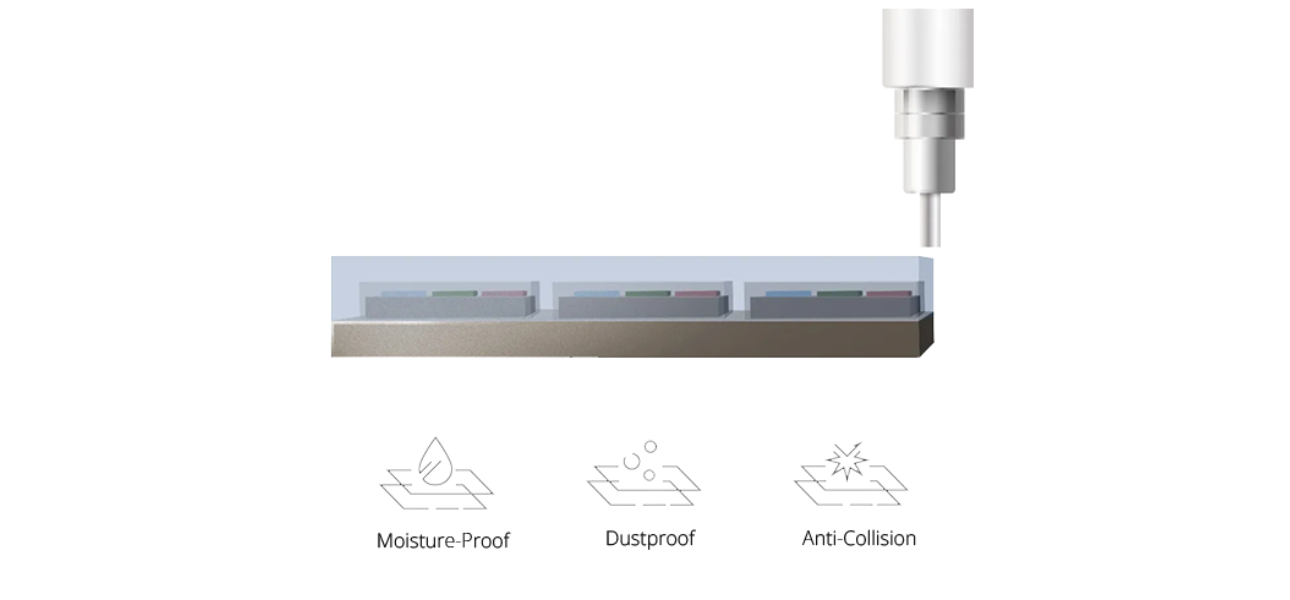

03 _GOB Technology Available, Durable & Lasting
GOB technology will make LED Screen waterproof and moisture resistant, high impact resistance, easy maintenance and cleaning. Higher stability with longer lifespan.
-

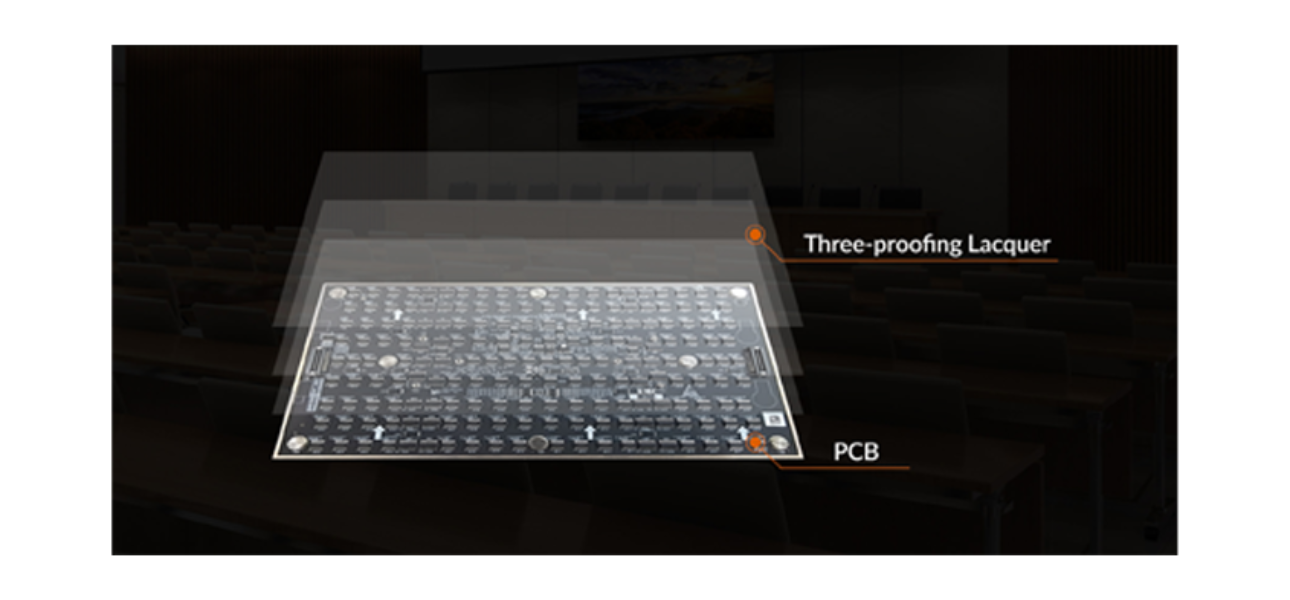

04 _Dust-proof, Moisture-proof, Corrosion-proof
The surface of PCB is painted with three-proofing lacquer, which can form a protective film, dust-proof, moisture-proof, corrosion-proof, and protect PCB from malfunction, prolong its lifespan.
-
05 _UL Certificate
UL certificate power supply with input 100~240V，50/60Hz, can work globally with worry-free.
-

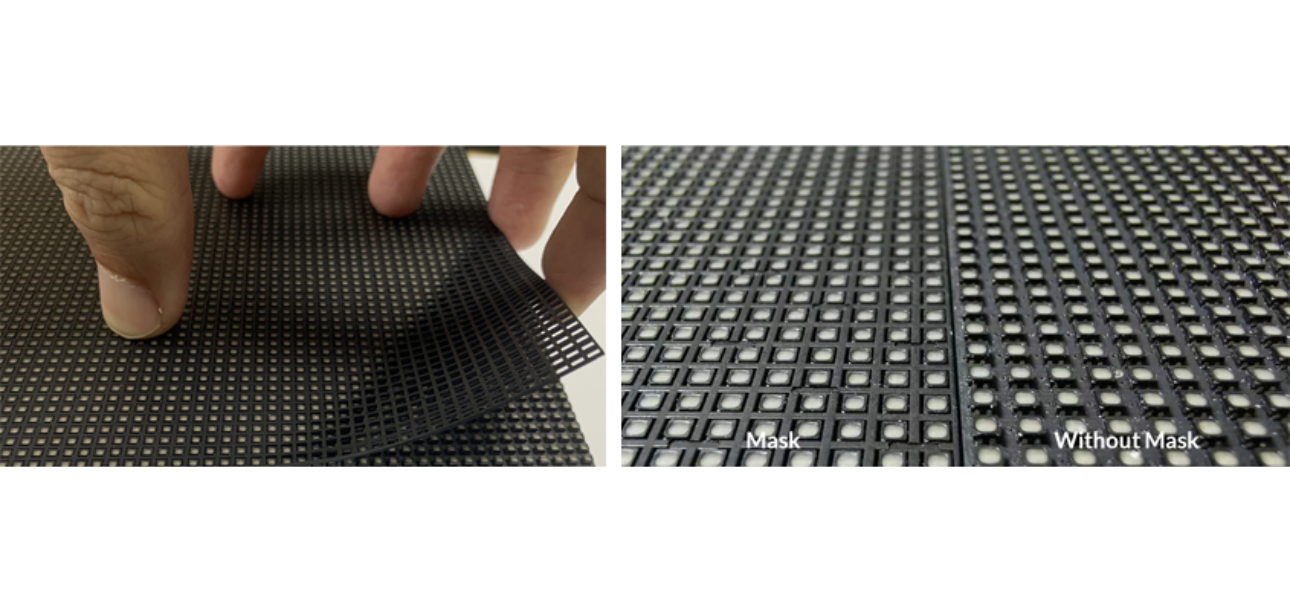

06 _Protective Mask Design
Embedded mask design, protecting the LEDs from collision, dust-proof, reducing maintenance cost and prolong the lifespan; Higher contrast, reach better display
-

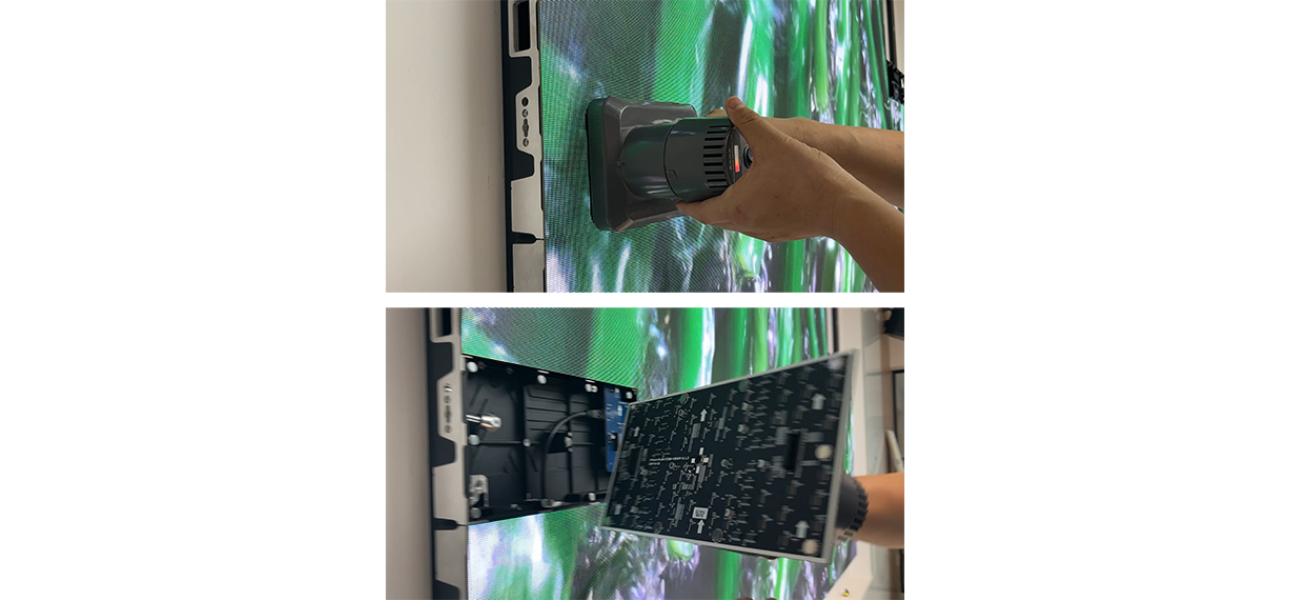

07 _Module Cable-less with Front Access
Module, receiving cards and power supplies can be maintained front, no maintenance channels needed ；Greatly improving the installation efficiency, also it will reduce the occurrence of some problems caused by cable.
-
12 _Accessories
Designed for full front installation and service, it removes the need for rear access and maximizes space efficiency. Supports hanging, wall-mounted, and floor-standing setups.
IP FIW SERIES 1.25MM SMD INDOOR-FIW121
- PIXEL PITCH:1.25mm
- PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
- MODULE PIXEL RESOLUTION (H X W):256x128dots
- CABINET PIXEL RESOLUTION (H X W):512x384dots
- BRIGHTNESS:800nits
- REFRESH RATE:3840Hz
- CABINET SIZE:640x480mm ( 25.19x18.89 inch)
- CABINET WEIGHT:7.4Kgs ( 16.31 lbs)
- ACCESSIBILITY:Front Access
- IP RATING:IP30
- CONTRAST RATIO: 50000:1
- WORKING TEMPERATURE: -20℃~+40℃
IP FIW SERIES 1.538MM SMD INDOOR-FIW151
- PIXEL PITCH:1.538mm
- PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
- MODULE PIXEL RESOLUTION (H X W):208x104dots
- CABINET PIXEL RESOLUTION (H X W):416x312dots
- BRIGHTNESS:800nits
- REFRESH RATE:3840Hz
- CABINET SIZE:640x480mm ( 25.19x18.89 inch)
- CABINET WEIGHT:7.4Kgs ( 16.31 lbs)
- ACCESSIBILITY:Front Access
- IP RATING:IP30
- CONTRAST RATIO: 50000:1
- WORKING TEMPERATURE: -20℃~+40℃
IP FIW SERIES 1.86MM SMD INDOOR-FIW181
- PIXEL PITCH:1.86mm
- PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
- MODULE PIXEL RESOLUTION (H X W):172x86dots
- CABINET PIXEL RESOLUTION (H X W):344x258dots
- BRIGHTNESS:800nits
- REFRESH RATE:3840Hz
- CABINET SIZE:640x480mm ( 25.19x18.89 inch)
- CABINET WEIGHT:7.4Kgs ( 16.31 lbs)
- ACCESSIBILITY:Front Access
- IP RATING:IP30
- CONTRAST RATIO: 50000:1
- WORKING TEMPERATURE: -20℃~+40℃
IP FIW SERIES 2.0MM SMD INDOOR-FIW201
- PIXEL PITCH:2.0mm
- PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
- MODULE PIXEL RESOLUTION (H X W):160x80dots
- CABINET PIXEL RESOLUTION (H X W):320x240dots
- BRIGHTNESS:1000nits
- REFRESH RATE:3840Hz
- CABINET SIZE:640x480mm ( 25.19x18.89 inch)
- CABINET WEIGHT:7.4Kgs ( 16.31 lbs)
- ACCESSIBILITY:Front Access
- IP RATING:IP30
- CONTRAST RATIO: 50000:1
- WORKING TEMPERATURE: -20℃~+40℃
IP FIW SERIES 2.5MM SMD INDOOR-FIW251
- PIXEL PITCH:2.5mm
- PIXEL CONFIGURATION & PACKAGE:3 in 1 SMD
- MODULE PIXEL RESOLUTION (H X W):128x64dots
- CABINET PIXEL RESOLUTION (H X W):256x192dots
- BRIGHTNESS:1000nits
- REFRESH RATE:3840Hz
- CABINET SIZE:640x480mm ( 25.19x18.89 inch)
- CABINET WEIGHT:7.4Kgs ( 16.31 lbs)
- ACCESSIBILITY:Front Access
- IP RATING:IP30
- CONTRAST RATIO: 50000:1
- WORKING TEMPERATURE: -20℃~+40℃
